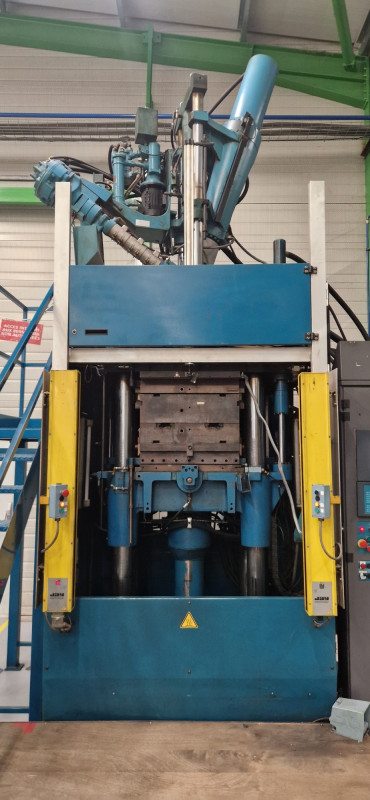

Rubber vertical injection molding machine
REP V68
Year of manufacture 1999
In perfect working condition

Clamping Unit:
Clamping force 4000 kN
Opening stroke 500 mm
Distance between platens 1017 mm
Distance between tie bars 730 x 440 mm
Mould height min-max 170 – 500 mm
Size of heating platens 630 x 800 mm
Heating power 2 x 11,1 kW

Injection Unit:
Reverse stroke 482 mm
Plating force high/low 125,6 kN / 39,7 kN
Screw diameter 40 mm

Plasticizing:
L/D ratio 15
Plodder rotation speed 0-225 min-1
Average output 2200 cm3/min
Heating power 2,8 kW

Injection:
Injection volume: 2000 cm3
Injection pressure: 1500 bar
Heating power 6,6 kW

Hydraulic Unit
Variable displacement pump
Load flow 100 / min
Operating pressure 250 bar
Motor power 37 kW
Tank capacity 370 l

Total installed power 74 kW
Width x depth at floor level 2952 x 1410 mm
Max. height, head raised 4800 mm
Weight (with mould, full of oil) 12 225 kg
