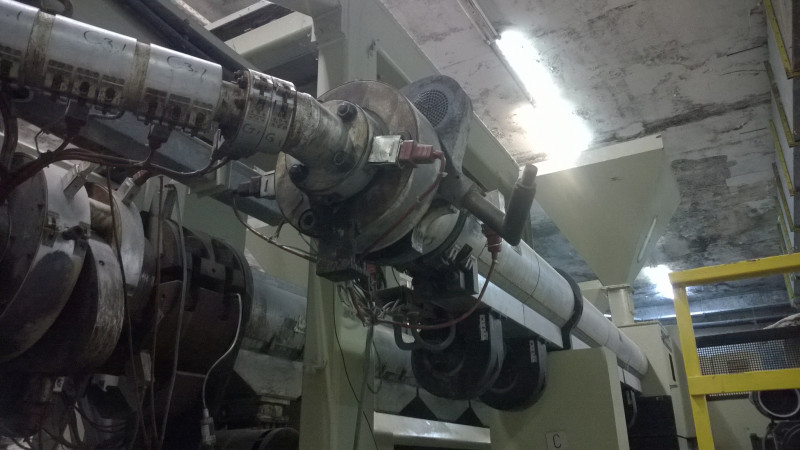

PP Reifenhauser 3 layer co-extrusion cast line
1. Extruder A 90
Extruder screw diameter: 90 mm
2. Extruder B 160
Extruder screw diameter: 160 mm
With direct trim feeder with conical screw with extruder and self-adjusting hopper for granules feeding.
3. Extruder C 90
Extruder screw diameter: 90 mm
4. n° 3 Hydraulic filter changing system
5. n° 3 Connection units between extruder and flat die
6. n° 1 Extruder platforms
7.
8. n° 1 Feed block
n° layers: 3
Layers distribution: B A C
10. n° 1 Flat extrustion head brand CLOEREN with heat bolt for automatic regulation
11. n° 1 Aspirant double chamber blade
12. n° 1 Pushing blade
13. n° 2 Edge-fixing electrostatic system
14. n° 1 Diagonal oscillator
15. n° 1 Cooling water pumps circuit group
17. n° 1 Control line consolle
19. TAKE-OFF unit with longidutinal cutting device and adjustable bands separating system:
21. Corona treatment
REVOLVER WINDER UP Working band 3000m
