Barbaros Cad
34788 İstanbul

Turkey

Business: Manufacturer

Machinery Categories: Melt filters

Products in Detail:

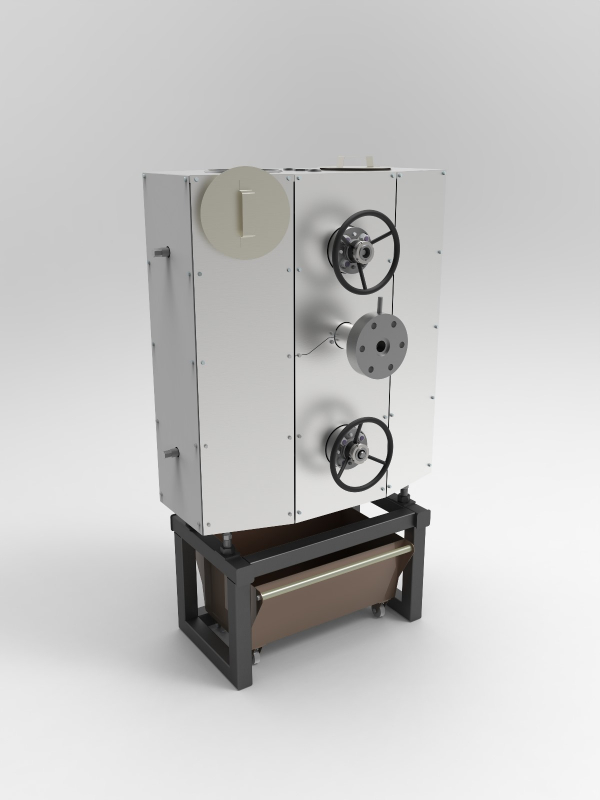

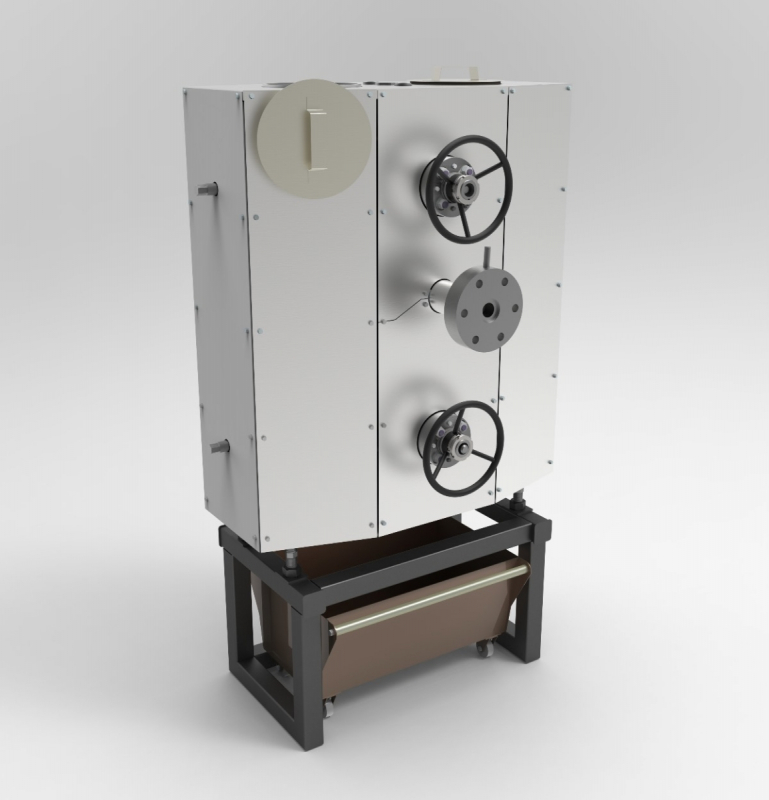

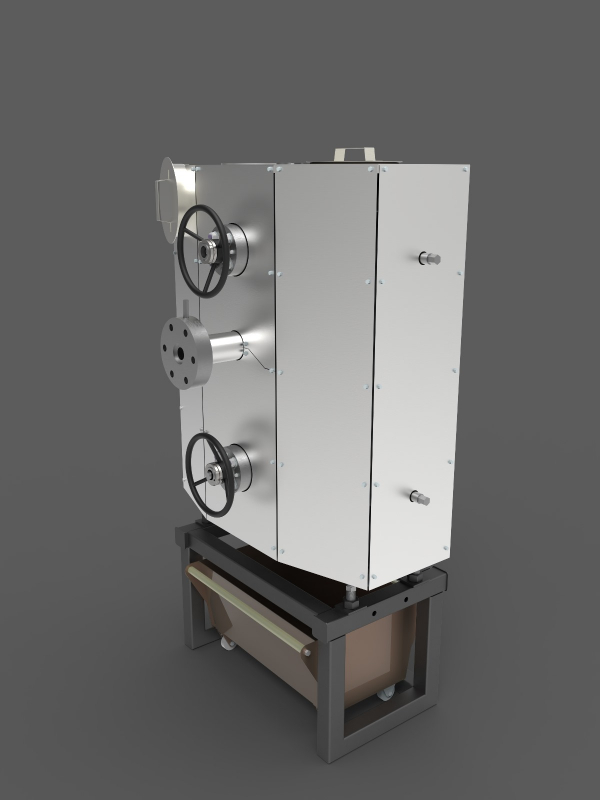

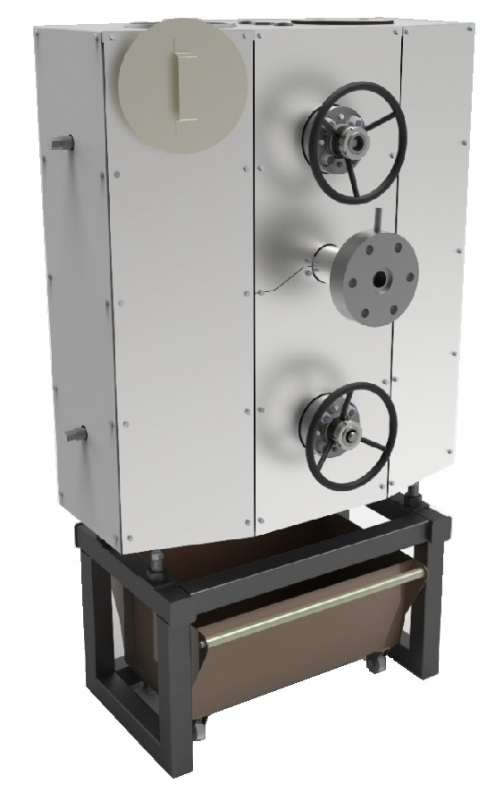

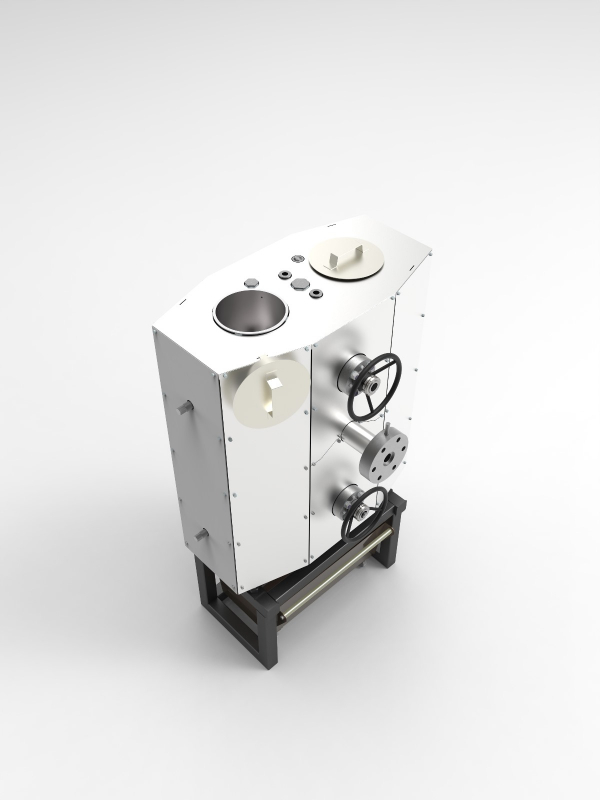

FLUX LAF Filtration Systems

Next Generation Large Area Continuous Polymer Filter FLUX large-area candle polymer filters redefine what processors can expect from melt filtration, combining compact hardware with high-throughput performance for demanding polyolefin and recycling lines.

With a flexible, customisable architecture, each system integrates easily into OEM machinery and complex industrial projects, reducing engineering friction and time to market. By focusing on pure functionality and resilience, FLUX delivers a minimalist, service friendly filter body that is simpler to operate, maintain and scale. The result is a new generation of polymer filtration that is significantly smaller, lighter and less chemical-intensive than conventional systems, delivering tangible productivity and sustainability gains per tonne of material processed.

Your Benefits
· Continuous operation.
· Simplest — most effective – most compact filter design.
· Plug-in start up. Easy to use. Easy to operate. Easy to change.
· Zero dead spots. No degradation risk.
· Shortest material residence time.
· Revolutionary valve design,. Lowered pressure loss.
· Modular. Inlet, outlet, valve positions all configurable.
· The best heating uniformity (±2°C), no external heater.
· All round heat insulation. Lowest energy loss.

Next-Generation Large Area Continuous Polymer Filtration

At FLUX, we strip away the superfluous to reveal pure purpose. Guided by disciplined engineering, we deliver cutting-edge FLUX large-area candle polymer filters that redefine what processors expect from melt filtration. By combining ultra-compact hardware with high-throughput performance, our filtration systems are built for demanding polymerization, compounding, textile, film, and recycling lines.
Engineering Excellence Meets Clean Functionality

Our continuous polymer filters feature a flexible, customizable architecture that seamlessly integrates into OEM machinery and complex industrial environments, lowering both engineering friction and your time to market.

• 48% Smaller & 39% Lighter: Engineered to maximize your factory floor space. Get more production lines per square meter and lower your CAPEX.
• True Valve Revolution: Our patented, rheology-optimized valves feature a zero-dead-spot design. They execute vessel transitions lightning-fast (< 30 sec) without pressure spikes, leaks, or line stops.
• Zero Death Zones: Advanced CFD precision engineering eliminates stagnation points, protecting your material from shear degradation and carbonization.
• Monolithic Oil Heating & 360° Energy Shield: An integrated oil-jacketed heating system provides perfect temperature uniformity (±2 °C) without external heaters. Combined with built-in all-round insulation, it dramatically slashes energy loss and operating costs (OPEX).
• Smart Automation: IIoT-ready with an intuitive touch HMI, real-time ΔP monitoring, and seamless DCS/SCADA integration via OPC-UA.

Tailored for the Entire Plastics Value Chain
From multi-thousand-ton virgin resin polymerization to converting post-consumer waste into premium pellets, FLUX handles delicate tasks (filtration ranges from 1 to 100 µm) across various polymers including PET, PBT, PA6/66, PP, PC, and recycled blends.

Discover our complete technical specifications and modular setups directly on the FLUX Product Range. https://www.filter-flux.com/de

Need a layout tailored to your process? Request a Free Consultation & Budgetary Quote from our engineering team today. Request a Quote | FLUX Polymer Filtration Systems
