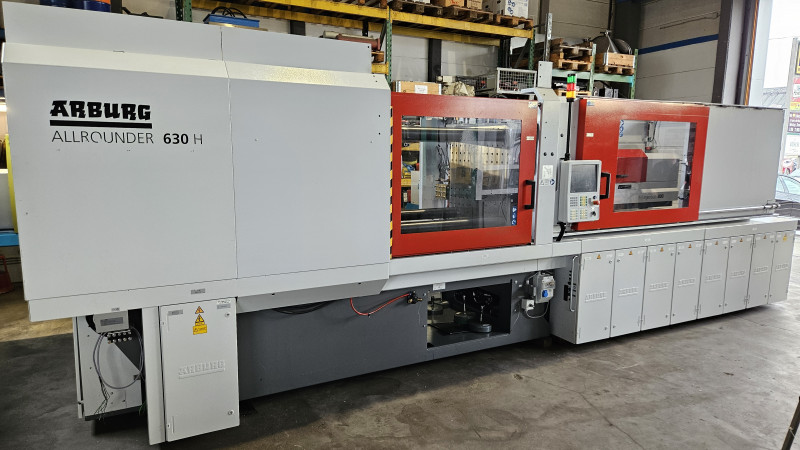

ARBURG Allrounder 630 H 2500-400
warehouse no.: 503584
manufacturer: ARBURG
type: Allrounder 630 H 2500-400
controller: Selogica
year of construction: 2019

ARBURG Injection Moulding Machine – Model 630 H 2500-400 with Multilift

technical data clamping unit
clamping force: 2500 kN
distance between tie-bars h x v: 630 x 630 mm
size of mould plates h x v: 900 x 900 mm
min. mould height: 300 mm
max. mould height: 750 mm
max. open daylight: 1300 mm
opening stroke: 550 mm
ejector stroke: 225 mm
ejector force: 86 kN
centering diameter of moving platen: 160 mm
centering diameter of fixed platen: 160 mm

technical data injection unit
screw diameter: 40 mm
swept volume: 201 ccm
injection pressure: 2000 bar
screw torque: 550 N
injection rate into the open: 251 g/s PS

measures & weight
measures of machine l x w x h: 7.05m x 2.05m x 2.35m
total weight: 13050KG

equipment included
screen text german
CEE-socket 16A
core pulling pneum. 1x
machine incl. Handling
machine incl. water flow regulator
machine without material hopper
machine without safety fencing
Anti vibration mounts
interface robot EUROMAP 67
interface OPC
Schuko-socket 10A
mould heating 12x

technical data robot-system
handling type: Linear
manufacture: ARBURG
controller: ML V 15 kg im Queraufbau
year of construction: 2019
handling weight: 15 kg
X axis: 900 mm
Y axis: 1200 mm
Z axis: 2400 mm
B axis rotationn: 270 °
C axis rotation: 180 °
screen-text: deutsch
total weight: 560 kg
