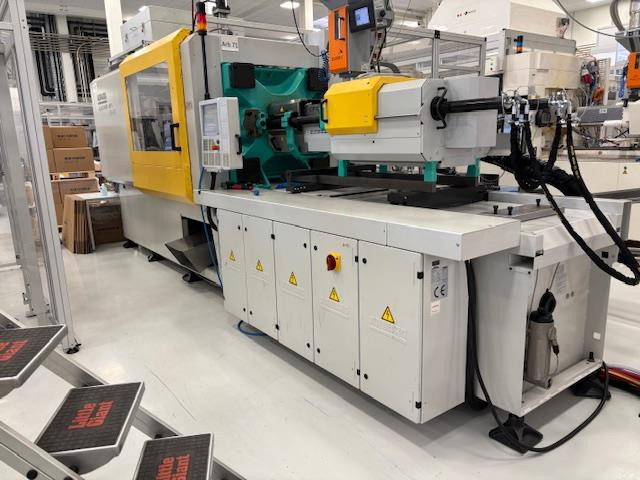

warehouse no.: 503604
manufacturer: ARBURG
type: Allrounder 630 S 2500-800
controller: Selogica
year of construction: 2012
operation hours: 43331 h

technical data clamping unit
clamping force: 2500 kN
distance between tie-bars h x v: 630 x 630 mm
size of mould plates h x v: 900 x 900 mm
min. mould height: 300 mm
max. mould height: 700 mm
max. open daylight: 1300 mm
opening stroke: 600 mm
ejector stroke: 90 mm
ejector force: 225 kN
centering diameter of moving platen: 160 mm
centering diameter of fixed platen: 160 mm
weight of mould: 3800 kg

technical data injection unit
screw diameter: 45 mm
swept volume: 318 ccm
injection pressure: 2470 bar
screw length: 22 l/d
screw stroke: 200 mm
screw speed: 60 min
screw torque: 1000 N
plasticising rate: 242 g/s PS
injection rate into the open: 291 g/s PS
number of heating zones: 7
nozzle stroke: 400 mm

measures & weight
measures of machine l x w x h: 6.12m x 2.25m x 2.21m
total weight: 12200KG

equipment included
screen text german
core pulling hydraulically 2x
machine incl. belt conveyor
machine incl. Handling
machine incl. safety fencing
Anti vibration mounts

technical data robot-system
handling type: Linearroboter
manufacture: Arburg
controller: Multilift
year of construction: 2012
X axis: 400 mm
Z axis: 1400 mm
C axis rotation: 90 °
total weight: 450 kg
