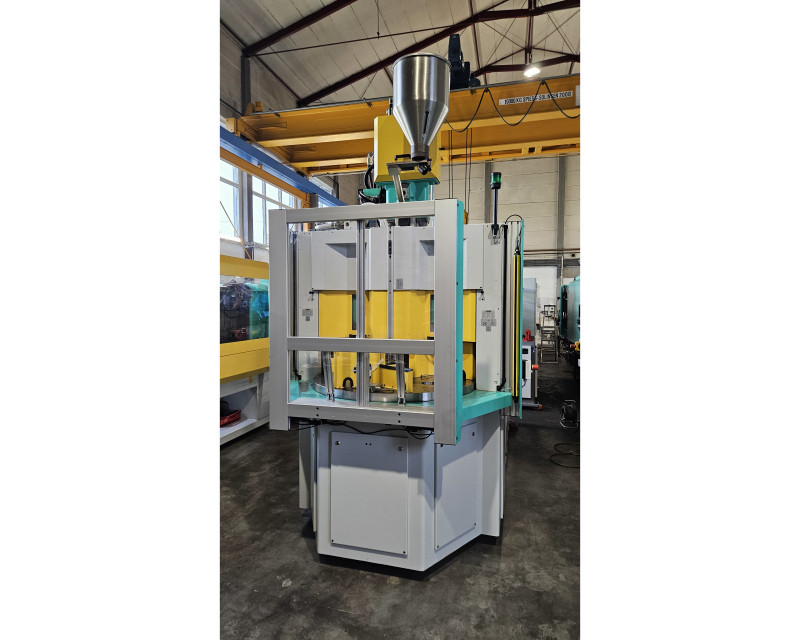

ARBURG Allrounder 1200 T 1000-170
warehouse no.: 503459
manufacturer: ARBURG
type: Allrounder 1200 T 1000-170
controller: Selogica
year of construction: 2013
operation hours: 22420 h

During the inspection, it was determined that the cylinder no longer met our quality standards.
This means that you have the choice between a 25, 30, or 35 mm unit.
This will be purchased individually for you.

technical data clamping unit
clamping force: 1000 kN
min. mould height: 400 mm
max. open daylight: 700 mm
opening stroke: 300 mm
round table diameter: 1200 mm
ejector stroke: 175 mm
ejector force: 25 kN
centering diameter of moving platen: 125 mm
centering diameter of fixed platen: 125 mm
weight of mould: 1150 kg

technical data injection unit
screw diameter: 20 mm
swept volume: 31 ccm
injection pressure: 2500 bar
screw length: 25 l/d
screw stroke: 120 mm
number of heating zones: 4
nozzle stroke: 210 mm

measures & weight
measures of machine l x w x h: 4.2m x 2.1m x 0m
total weight: 4300KG

equipment included
3x control for hotrunner
screen text german
CEE-socket 16A
complact flash drive
rotary table
freely programmable inputs (2) and outputs (2)
machine with material hopper
machine incl. water flow regulator
Hydraulically actuated needle shut-off-nozzle
interface robot EUROMAP 67
Servomotor pump drive Energy-saving drive
wear-resistant injection unit
