warehouse no.: 503728
manufacturer: ARBURG

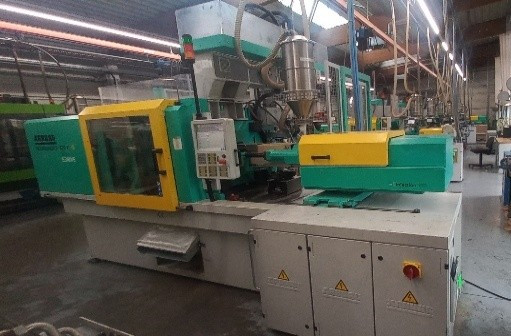

type: Allrounder 470 E 1000-290
controller: Selogica
year of construction: 2013
operation hours: 71000 h

technical data clamping unit
clamping force: 1000 kN
distance between tie-bars h x v: 470 x 470 mm
size of mould plates h x v: 637 x 637 mm
min. mould height: 250 mm
max. mould height: 500 mm
max. open daylight: 850 mm
opening stroke: 350 mm
ejector stroke: 175 mm
ejector force: 40 kN
centering diameter of moving platen: 125 mm
centering diameter of fixed platen: 125 mm
weight of mould: 760 kg

technical data injection unit
screw diameter: 35 mm
swept volume: 144 ccm
injection pressure: 2000 bar
screw length: 20 l/d
screw stroke: 150 mm
screw torque: 380 N
plasticising rate: 20 g/s PS
injection rate into the open: 113 g/s PS
number of heating zones: 4
nozzle stroke: 300 mm

measures & weight
measures of machine l x w x h: 4.4m x 1.9m x 2m
total weight: 5280KG

equipment included
screen text german
CEE-socket 16A
core pulling hydraulically 1x
machine incl. Handling
Anti vibration mounts
mould heating 6x
technical data robot-system
handling type: Linear
manufacture: ARBURG
controller: Multilift 6 kg
year of construction: 2013
