Exchange for machinery and equipment

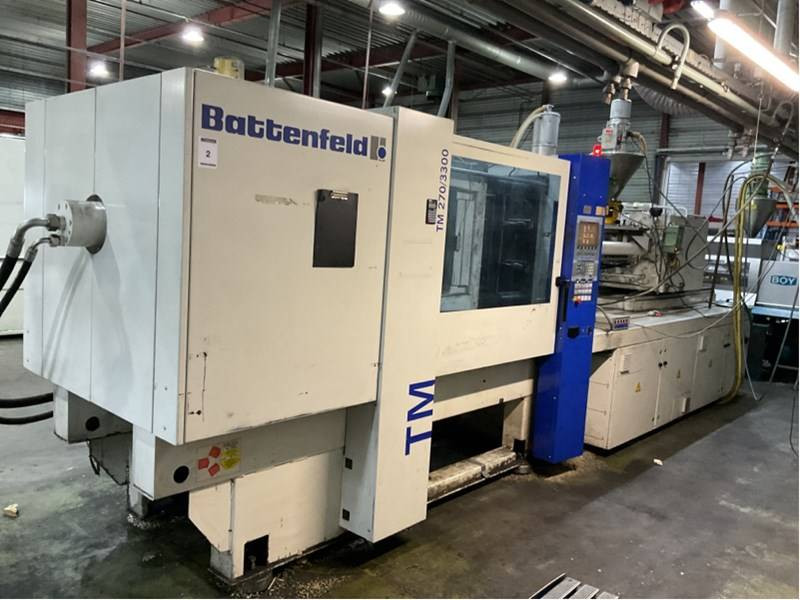

BATTENFELD TM 270-3300
Offer from:2025-08-05
Categorie:Injection moulding machines
Manufact./Type:TM 270-3300
Price:n.a.
Technical data:
Build in: 2007
Operating hours: 54.840 h
Photos:
Logistical data:
Location: Langenfeld, Germany
Description:

warehouse no.: 503221
manufacturer: BATTENFELD
type: TM 270-3300
controller: UNILOG B4
year of construction: 2007
operation hours: 54840 h

technical data clamping unit
clamping force: 2700 kN
distance between tie-bars h x v: 630 x 630 mm
size of mould plates h x v: 940 x 940 mm
min. mould height: 250 mm
max. mould height: 650 mm
max. open daylight: 1250 mm
opening stroke: 600 mm
ejector stroke: 200 mm
ejector force: 59 kN
centering diameter of moving platen: 160 mm
centering diameter of fixed platen: 160 mm
weight of mould: 3200 kg

technical data injection unit
screw diameter: 75 mm
swept volume: 1657 ccm
injection pressure: 2087 bar
screw length: 22 l/d
screw stroke: 375 mm
screw speed: 178 min
screw torque: 3759 N
plasticising rate: 76 g/s PS
injection rate into the open: 346 g/s PS
number of heating zones: 5
nozzle stroke: 600 mm
measures & weight
measures of machine l x w x h: 7.35m x 1.8m x 2.4m
total weight: 16000KG

equipment included
screen text dutch
core pulling hydraulically 1x
air valve 1x
machine with material hopper
machine incl. water flow regulator
Machine without Handling
machine without hopper loader
Anti vibration mounts
interface EUROMAP 67
interface USB
