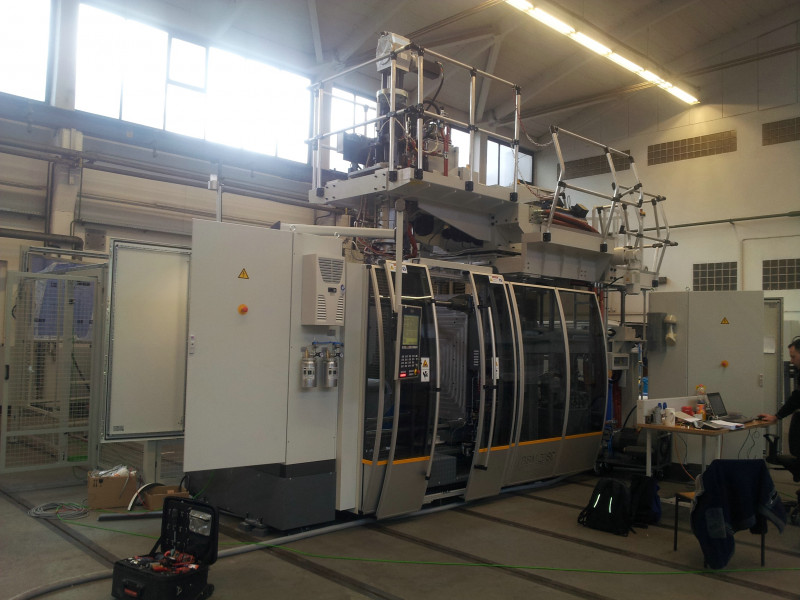

BBM 20SB

- Clamping force : 20mt
• Three platen clamping system with high advanced electro- mechanical closing unit with special platens to support large moulds
• Mold dimensions : 800 (600)mm width, 1200mm length, min 830mm max 1530mm daylight, max 1500 Kg
• Small power pack (5.5 kW) for the additional mould functions
- Single-parison, mandrel type accumulator head, First In / First Out, 1.5litre volume (PA)
• Electric cylinder for WDS with 18mm stroke
• Total weight about 700kg
• Hybrid control for push out of the material.
• Pre-blowing through the piston of the head.
• Die slider system with 2 electric cylinders in 90° angle
- Extruder 60/30D max 120Kg/h of PA
• Special hardened screw with soft core for PP, PA / GF, Hytrel and Santoprene
- Bottom blow and spreading station with 2 blow pins
- Suction blow unit with adjustable volume through proportional valve
- Linear water cooled take-out system

Machine overhaul availabile upon request.

The machine is used and in running conditions. Available now.
