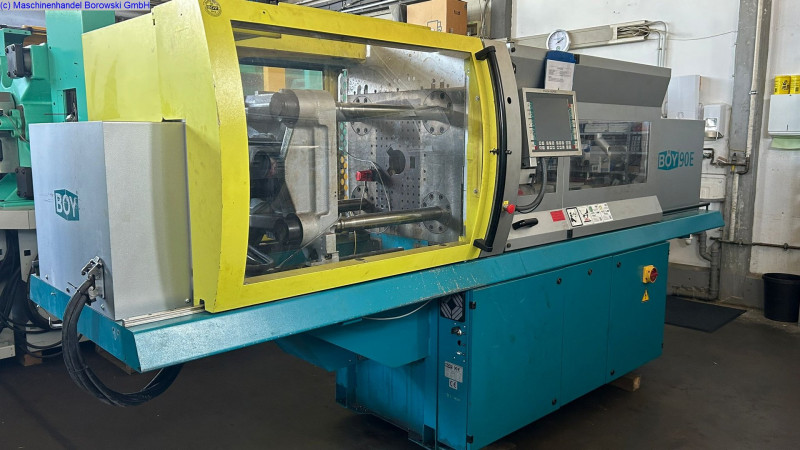

warehouse no.: 503452
manufacturer: BOY
type: Boy 90 E
controller: Procan ALPHA
year of construction: 2012
operation hours: 49130 h

technical data clamping unit
clamping force: 900 kN
distance between tie-bars h x v: 430 x 360 mm
size of mould plates h x v: 635 x 610 mm
min. mould height: 250 mm
max. open daylight: 725 mm
opening stroke: 475 mm
ejector stroke: 130 mm
ejector force: 20 kN
centering diameter of moving platen: 110 mm
centering diameter of fixed platen: 110 mm
weight of mould: 800 kg

technical data injection unit
screw diameter: 42 mm
swept volume: 157.8 ccm
injection pressure: 2347 bar
screw length: 20 l/d
screw stroke: 155 mm
screw speed: 280 min
screw torque: 735 N
plasticising rate: 136 g/s PS
number of heating zones: 4
nozzle stroke: 250 mm

measures & weight
measures of machine l x w x h: 4.37m x 1.21m x 2.2m
total weight: 3730KG

equipment included
screen text german
core pulling hydraulically 1x
machine without material hopper
machine without water flow regulator
Anti vibration mounts
interface EUROMAP 67
interface USB
