Manufacturer: Kuhne
Model: K45-24D
Year of manufacture: 1981
Condition: Overhauled (used)
Operational condition: Fully functional

Previous application: Production of TPE films up to 6 mm thickness. Processing of various other polymers is possible.

The line was in operation until recently and can be inspected at any time in Nuremberg.

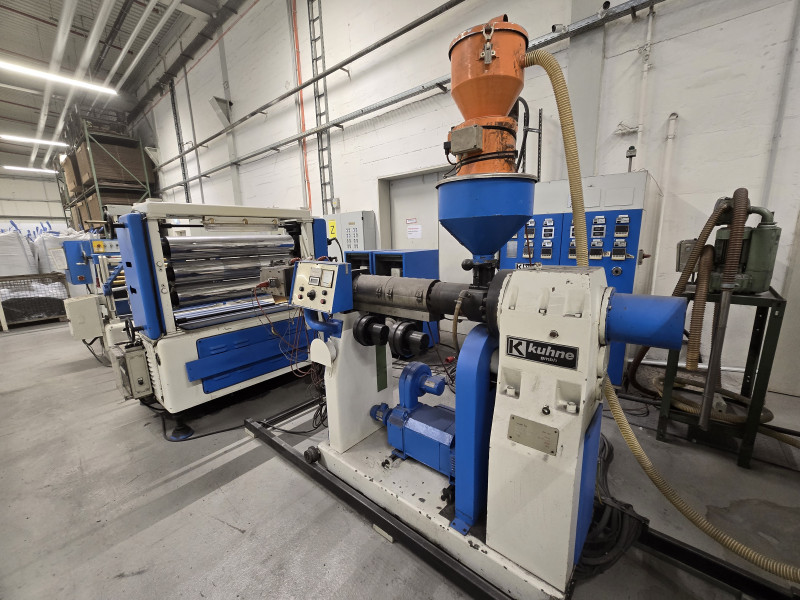

The line consists of:

Single screw extruder Kuhne K45-24D
Screw diameter: 48 mm
Process length: 24 D
Heating capacity: 6.0 kW
Net weight: approx. 1,150 kg

Flat die for film extrusion up to max. 330 mm width

Calender
Roll width (gross): 1,200 mm
Roll width (net): 1,100 mm (max. film width)

Haul-off unit and flying shear

Further technical details available upon request.
