warehouse no.: 503061

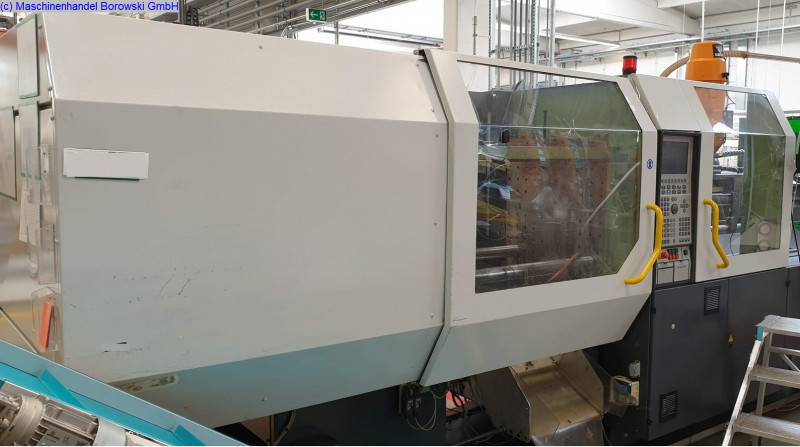

manufacturer: DEMAG
type: Ergotech system 150-610
controller: NC4
year of construction: 2004
operation hours: 63329 h

clamping force: 1500 kN
distance between tie-bars h x v: 500 x 500 mm
size of mould plates h x v: 750 x 750 mm
min. mould height: 250 mm
max. mould height: 560 mm
max. open daylight: 1060 mm
opening stroke: 500 mm

screw diameter: 45 mm
swept volume: 323 ccm
injection pressure: 1973 bar

equipment included:
Ejector parallel to the mould movement
screen text german
CEE-socket 16A
pressure accumulator for uprated injection speed
core pulling hydraulically 1x
air valve 1x
machine with material hopper
machine without belt conveyor
machine without hopper loader
Anti vibration mounts
Schuko-socket 10A
choice unit

measures of machine l x w x h: 5.45m x 1.63m x 2.1m
total weight: 7500KG
