Demag Systec Servo 420/820-2300
| Offer from: | 2026-08-25 |
| Categorie: | Injection moulding machines |
| Manufact./Type: | Systec Servo 420/820-2300 |
| Price: | n.a. |
Technical data:
| Build in: | 2015 |

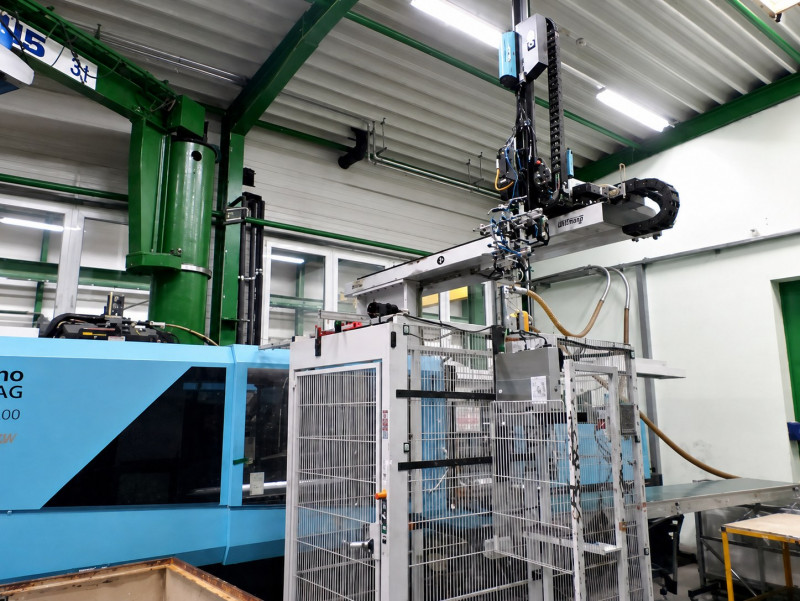

Photos:
Description:
Clamping force: 420 t
Year of construction: 2015
Injection unit: .../2300
Screw diameter: 70 mm
Spec. injection pressure: 1877 bar
Injection volume: 1212 ccm
Shot weight in PS: 1100 g
L/D screw ratio: 20
Clamping unit: 420/...
Platen size: 1200 x 1200 mm
Tie-bar clearance: 820 x 820 mm
Mould height: 380 - 825 mm
Opening stroke: 770 mm
Max. daylight: 1595 mm
Ejector force: 96 kN
Ejector stroke: 230 mm
Total connected load: 78 kW
Weight: 21000 kg
Control type: NC5
Equipment: servo-hydraulic pump drive activeDrive, p+v controlled injection (closed loop), wear-resistant screw with bimetallic barrel, automatic mould height adjustment, clamping force control, mould protection activeProtect, cavity-pressure dependent holding pressure switchover (WID), process data acquisition PDE, 8-fold cooling water flow controller, EUROMAP 67 interface, World Connect remote maintenance, 4 x hydraulic core pull, 4 hydraulic cascades, 40 hot runner zones, robot DR 832 CNC and safety fence included
Year of construction: 2015
Injection unit: .../2300
Screw diameter: 70 mm
Spec. injection pressure: 1877 bar
Injection volume: 1212 ccm
Shot weight in PS: 1100 g
L/D screw ratio: 20
Clamping unit: 420/...
Platen size: 1200 x 1200 mm
Tie-bar clearance: 820 x 820 mm
Mould height: 380 - 825 mm
Opening stroke: 770 mm
Max. daylight: 1595 mm
Ejector force: 96 kN
Ejector stroke: 230 mm
Total connected load: 78 kW
Weight: 21000 kg
Control type: NC5
Equipment: servo-hydraulic pump drive activeDrive, p+v controlled injection (closed loop), wear-resistant screw with bimetallic barrel, automatic mould height adjustment, clamping force control, mould protection activeProtect, cavity-pressure dependent holding pressure switchover (WID), process data acquisition PDE, 8-fold cooling water flow controller, EUROMAP 67 interface, World Connect remote maintenance, 4 x hydraulic core pull, 4 hydraulic cascades, 40 hot runner zones, robot DR 832 CNC and safety fence included
