warehouse no.: 503505

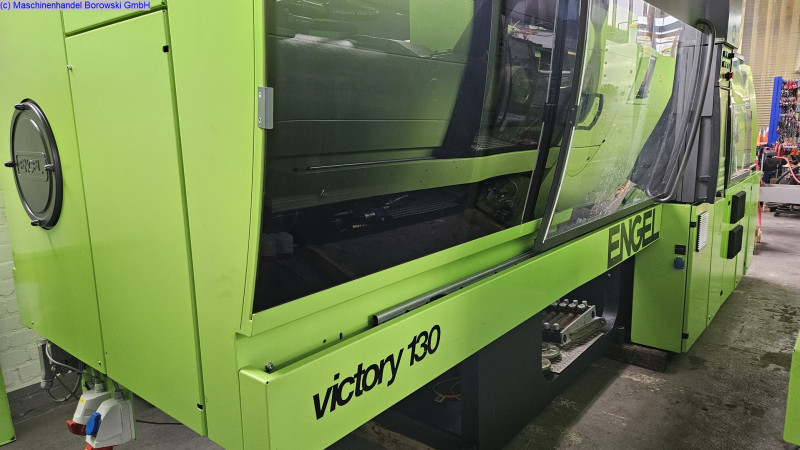

manufacturer: ENGEL
type: VICTORY 1050-130 Tech
controller: CC200
year of construction: 2008
operation hours: 24896 h

technical data clamping unit
clamping force: 1300 kN
size of mould plates h x v: 750 x 750 mm
min. mould height: 300 mm
max. open daylight: 900 mm
opening stroke: 600 mm
ejector stroke: 150 mm
ejector force: 61 kN
centering diameter of moving platen: 160 mm
centering diameter of fixed platen: 160 mm
weight of mould: 540 kg

technical data injection unit
screw diameter: 55 mm
swept volume: 510 ccm
injection pressure: 1650 bar
screw length: 20 l/d
screw stroke: 215 mm
screw speed: 230 min
injection rate into the open: 230 g/s PS
number of heating zones: 5
nozzle stroke: 350 mm

measures & weight
measures of machine l x w x h: 5.8m x 1.7m x 2.3m
total weight: 9500KG

equipment included
screen text german
screen text english
CEE-socket 16A
core pulling hydraulically 1x
machine incl. water flow regulator
machine without material hopper
machine without safety fencing
Anti vibration mounts
interface robot EUROMAP 67
interface for ejector plates safety
Schuko-socket 10A
mould heating 8x
