warehouse no.: 503503

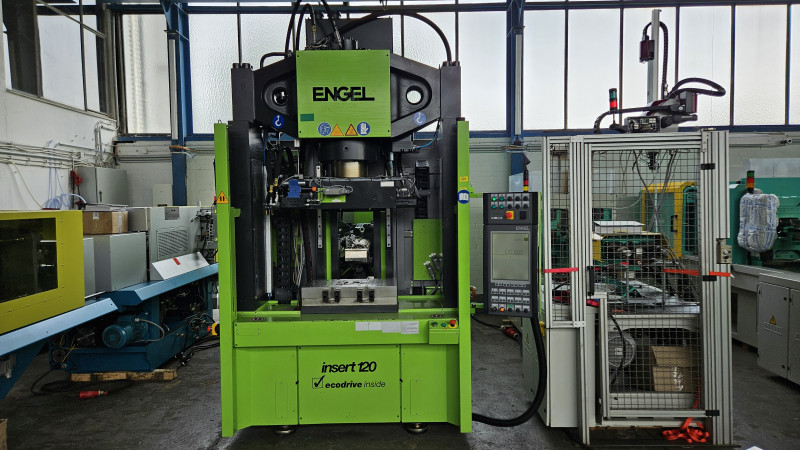

manufacturer: ENGEL
type: insert 650H-120
controller: CC200
year of construction: 2012
operation hours: 10624 h

technical data clamping unit
clamping force: 1200 kN
size of mould plates h x v: 710 x 400 mm
min. mould height: 400 mm
max. open daylight: 750 mm
opening stroke: 350 mm
ejector stroke: 100 mm
ejector force: 16 kN
centering diameter of fixed platen: 125 mm

technical data injection unit
screw diameter: 35 mm
swept volume: 192 ccm
injection pressure: 1700 bar
screw length: 24 l/d
screw stroke: 200 mm
screw speed: 400 min
plasticising rate: 31 g/s PS
injection rate into the open: 151 g/s PS
number of heating zones: 4
nozzle stroke: 500 mm

measures & weight
measures of machine l x w x h: 4.2m x 2m x 3.6m
total weight: 12500KG

equipment included
screen text german
screen text english
air valve 1x
machine incl. water flow regulator
machine without material hopper
Anti vibration mounts
clamp unit vertikal
interface for dosing unit
mould heating 8x
