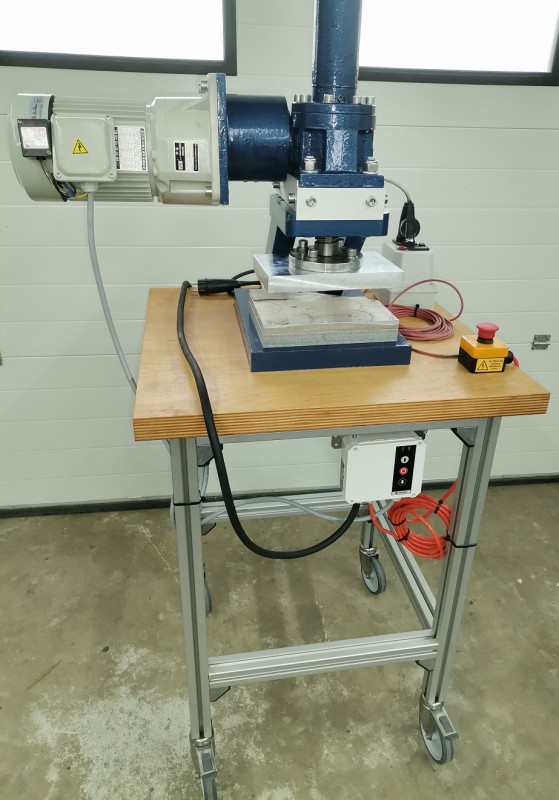

Electric laboratory hot press REITZ EHSP100F

Laboratory hot press with pressing force 40 KN (4 tons), ratio 1: 16, spindle diameter 45 mm, pitch 8 mm, spindle stroke 0.5 mm per revolution.
Gear motor 0.75 KW, 1,500 rpm, 4-pole, with helical gearbox i = 1: 5,
Speed 150 mm / min. Max. Dynamic load 40 kN.
With reversing control, emergency stop and motor protection plug.

Table 700 * 700 mm, pressing surface approx. 100 * 200 mm, clear height approx. 140 mm.

Undercounter made of high quality aluminum profiles 4545 mm,
the tabletop is made of a multiplex board.

The laboratory hot press has a press force of 40 kN (dynamic load).
Typical applications are press work with heat for embossing, deformation or vulcanization.

The spindle is self-locking and thus keeps the pressing force for a long time.

With heating plate, insulating plate and temperature control up to 220 ° C for use as a heating press.
