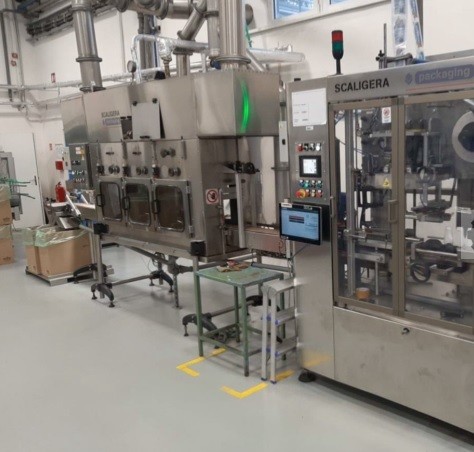

GMB#40165 (2010) Scaligera Ulisse 4000 Sleeve machine in GERMANY

Brand: Scaligera

Model: Ulisse 4000

Year: 2010

The machine could pack a maximum of 4,000 fl./h.

Previously 2,800 pieces/h output

Both 1L bottles (width 97mm, depth 60mm, height 273mm and 1L glasses (diameter 96mm, height 180mm) can be filled.

Maximum bottle diameter is 130mm, maximum height 300mm

incl. steam generator Garioninaval VPR220



1. Frame copletely clad in stainless steel AISI 304

2. motorized support for second sleeve reel inside the machine

3. Double support for second sleeve reel placed outside the machine

4. mechanically supported mandrel

5. rotative cutting multi-blades

6. mechanically/pneumatic sleeve centering device

7. Sleeve orientation device

8. Sleeve dragging geared by brushless motors

9. Sleeve throwing geared by brushless motors

10. pLC omron / Siemens / Allen Bradley

11. multilanguage, touch screen display

12. Inverter omron, Danfoss

13. pneumatics Festo, SmC

14. Sleeve positioning device

15. Vertical/horizontal pre-cut device

16. Store with double feeding reels 30/100 mt

17. products expeller with pneumatic or soft device

18. Electrical cabinet in stainless steel AISI 304

19. Accident prevention
protections inaccordance with CEregulations


Location: Germany

Price Exworks as is / where is
