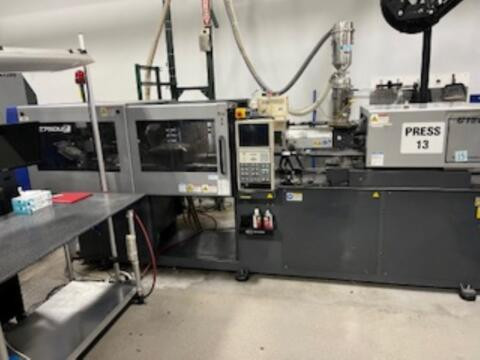

GMB#50134 (2012) 75 Ton Sumitomo SE75DUZ-C160 Electric Injection Molding machine in USA

BRAND SUMITOMO ELECTRIC

MODEL NUMBER SE75DUZ-C160

YEAR 2010

TONNAGE 83 TON

HOURS 57,190

SHOT SIZE 1.73 oz.

TYPE HORIZONTAL

OPTIONS & UPGRADES CORE PULL, AIR BLAST MOVABLE PLATEN

MACHINE NOTES

A 32 MM OR 2.8 OZ. SCREW AND BARREL SET UP IN NEW CONDITION AVAILABLE FOR ADDITIONAL COST.

CLAMP

DOUBLE TOGGLE ELECTRIC

TIE BAR DISTANCE 16.14 inches x 14.17 inches

PLATEN SIZE 22.83 inches x 20.87 inches

DAYLIGHT MIN 6.3 inches

DAYLIGHT MAX 27.95 inches 16.14 MAX MOLD HEIGHT

CORE PULL SEQUENCES YES

TYPES OF CONTROLS NC 5

VOLTAGE 230

DIMENSIONS 13.92 ft x 3.5 ft x 5.67 ft

OVERALL CONDITION VERY GOOD

BARREL & SCREW EXCELLENT

CONDITION NOTES A 32 MM OR 2.8 OZ. SCREW AND BARREL SET UP IN NEW CONDITION AVAILABLE FOR ADDITIONAL COST.

Location: USA

Price exworks as is / where is
