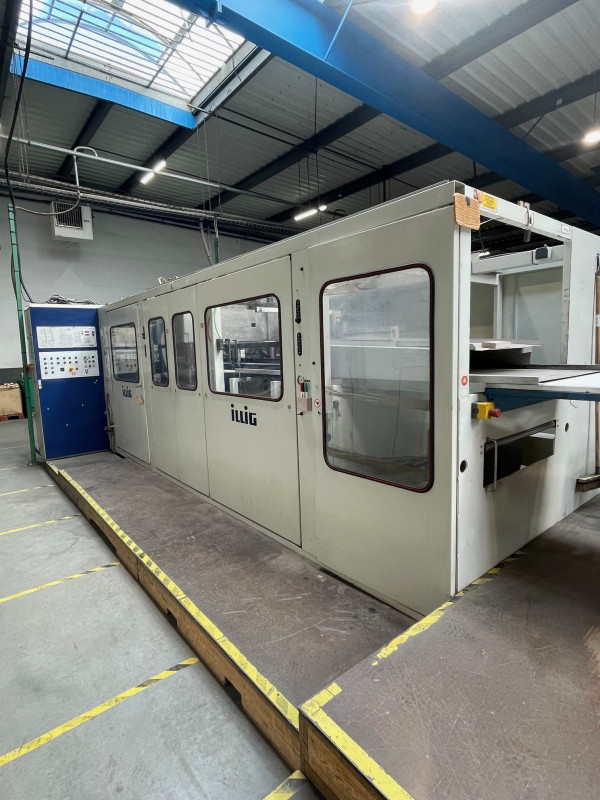

ILLIG RV 74
| Offer from: | 2025-09-22 |
| Categorie: | Thermoforming machines |
| Manufact./Type: | RV74 |
| Price: | n.a. |
Technical data:
| Build in: | 1999 |
| Operating hours: | 49.900 h |
Photos:
Logistical data:
| Location: | France |
Description:
3-station machine:
- form
- cut
- stack
Features:
Unwinding support: max. roll diameter: 1,200 mm
Max. forming area: 700 mm x 500 mm
Min. forming area: 400 mm x 250 mm
Roll width: 750 mm max.
Material thickness: 2 mm
Forming height above the film: 120 mm
Forming height below the film: 40 mm
Max. 20 cycles per minute
Very well maintained.
Currently in production.
- form
- cut
- stack
Features:
Unwinding support: max. roll diameter: 1,200 mm
Max. forming area: 700 mm x 500 mm
Min. forming area: 400 mm x 250 mm
Roll width: 750 mm max.
Material thickness: 2 mm
Forming height above the film: 120 mm
Forming height below the film: 40 mm
Max. 20 cycles per minute
Very well maintained.
Currently in production.
