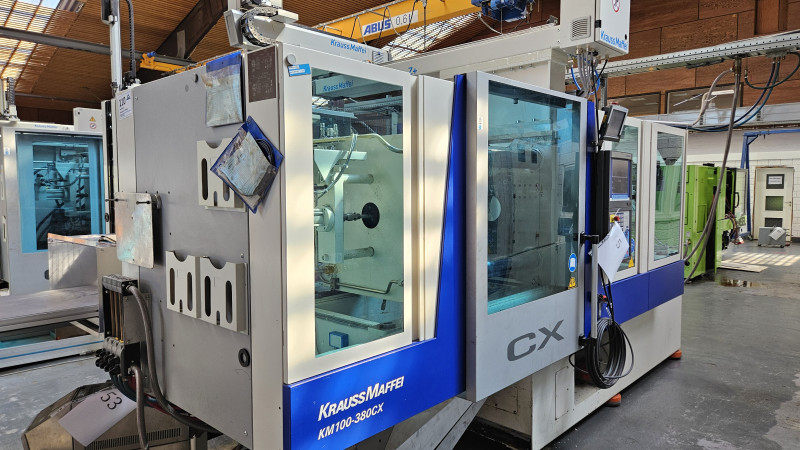

KRAUSS MAFFEI KM 100/380 CX

warehouse no.: 503471
manufacturer: KRAUSS MAFFEI
type: KM 100-380 CX
controller: MC5
year of construction: 2007
operation hours: 30056 h

technical data clamping unit
clamping force: 1000 kN
distance between tie-bars h x v: 470 x 470 mm
size of mould plates h x v: 745 x 770 mm
min. mould height: 300 mm
max. open daylight: 900 mm
opening stroke: 600 mm
ejector stroke: 150 mm
ejector force: 22 kN
centering diameter of moving platen: 125 mm
centering diameter of fixed platen: 160 mm

technical data injection unit
screw diameter: 40 mm
swept volume: 201 ccm
injection pressure: 1860 bar
screw length: 23 l/d
screw speed: 490 min
plasticising rate: 29 g/s PS
injection rate into the open: 151 g/s PS
number of heating zones: 5

measures & weight
measures of machine l x w x h: 4.7m x 1.7m x 2.25m
total weight: 7800KG

equipment included
screen text german
screen text english
CEE-socket 16A
core pulling hydraulically 2x
air valve 1x
machine with material hopper
machine incl. water flow regulator
Anti vibration mounts
interface robot EUROMAP 67
Schuko-socket 10A
