warehouse no.: 503470

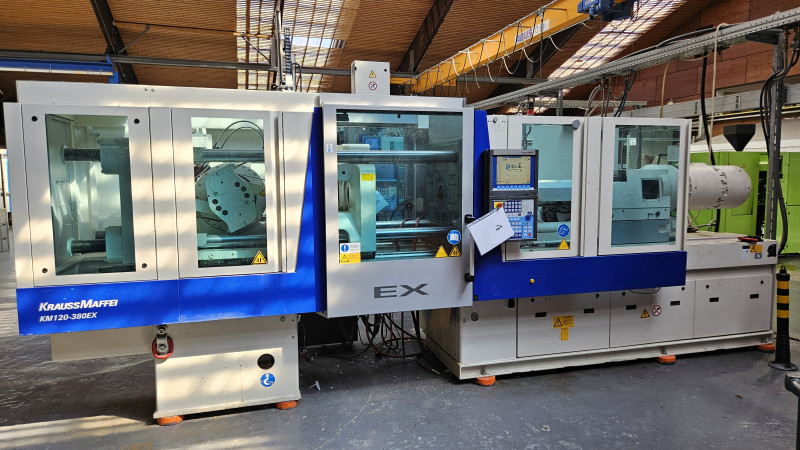

manufacturer: KRAUSS MAFFEI
type: KM 120-380 EX
controller: MC5
year of construction: 2008
operation hours: 10113 h

technical data clamping unit
clamping force: 1200 kN
distance between tie-bars h x v: 470 x 470 mm
size of mould plates h x v: 780 x 735 mm
min. mould height: 200 mm
max. mould height: 450 mm
max. open daylight: 850 mm
opening stroke: 400 mm
ejector stroke: 150 mm
ejector force: 22 kN
centering diameter of moving platen: 160 mm
centering diameter of fixed platen: 125 mm
weight of mould: 1485 kg

technical data injection unit
screw diameter: 35 mm
swept volume: 156 ccm
injection pressure: 2429 bar
screw length: 23 l/d
screw speed: 289 min
plasticising rate: 27 g/s PS
injection rate into the open: 477 g/s PS
number of heating zones: 5

measures & weight
measures of machine l x w x h: 6m x 1.7m x 2.19m
total weight: 9700KG

equipment included
screen text german
screen text english
CEE-socket 16A
core pulling hydraulically 2x
machine incl. water flow regulator
machine without material hopper
Anti vibration mounts
electric interface for handling units according to Euromap 12
Schuko-socket 10A
