warehouse no.: 503469

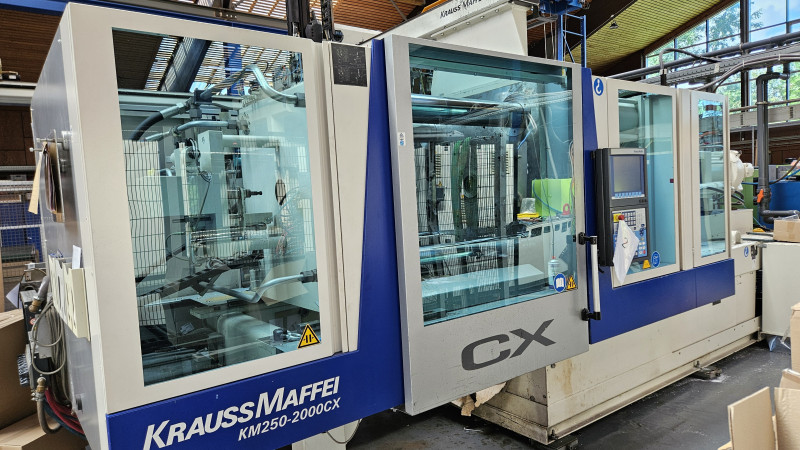

manufacturer: KRAUSS MAFFEI
type: KM 250-2000 CX
controller: MC5
year of construction: 2008
operation hours: 17745 h


technical data clamping unit
clamping force: 2500 kN
distance between tie-bars h x v: 630 x 630 mm
size of mould plates h x v: 995 x 1050 mm
min. mould height: 330 mm
max. open daylight: 1170 mm
opening stroke: 820 mm
ejector stroke: 200 mm
ejector force: 58 kN
centering diameter of moving platen: 160 mm
centering diameter of fixed platen: 160 mm
technical data injection unit
screw diameter: 55 mm
swept volume: 570 ccm
injection pressure: 2387 bar
screw length: 22 l/d
screw speed: 260 min
plasticising rate: 49 g/s PS
injection rate into the open: 261 g/s PS

measures & weight
measures of machine l x w x h: 6.7m x 2.2m x 2.3m
total weight: 14500KG

equipment included
screen text german
CEE-socket 16A
core pulling hydraulically 2x
machine incl. belt conveyor
machine incl. Handling
machine incl. safety fencing
machine incl. water flow regulator
machine without material hopper
machine without hopper loader
Anti vibration mounts
interface EUROMAP 67
Schuko-socket 10A

technical data robot-system
handling type: Linear
manufacture: Krauss Maffei
controller: LR 150 - 1577
X axis: 900 mm
Y axis: 1400 mm
Z axis: 2000 mm
total weight: 395 kg
