warehouse no.: 503569
manufacturer: KRAUSS MAFFEI

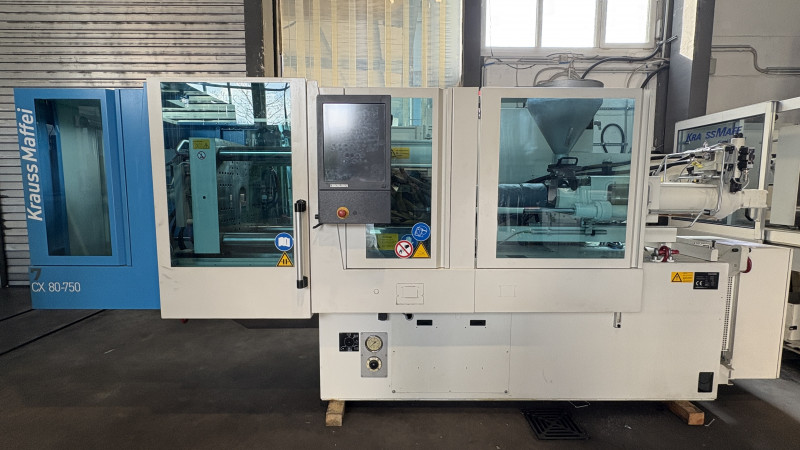

type: KM 80-750 CX
controller: MC6
year of construction: 2012
operation hours: 34000 h

technical data clamping unit
clamping force: 800 kN
distance between tie-bars h x v: 420 x 420 mm
size of mould plates h x v: 670 x 670 mm
min. mould height: 250 mm
max. mould height: 500 mm
max. open daylight: 750 mm
opening stroke: 500 mm
ejector stroke: 150 mm
ejector force: 23 kN
centering diameter of moving platen: 125 mm
centering diameter of fixed platen: 125 mm
weight of mould: 1000 kg

technical data injection unit
screw diameter: 45 mm
swept volume: 318 ccm
injection pressure: 2336 bar
screw length: 22 l/d
screw speed: 355 min
injection rate into the open: 143 g/s PS
number of heating zones: 5

measures & weight
measures of machine l x w x h: 4.5m x 1.5m x 2m
total weight: 3900KG

equipment included
screen text german
core pulling hydraulically 1x
machine incl. Handling
machine without belt conveyor
machine without hopper loader
Anti vibration mounts

technical data robot-system
handling type: integrierter Linearroboter
manufacture: Krauss Maffei
controller: LRX 100
year of construction: 2012
handling weight: 10 kg
operation hours: 3400 h
X axis: 550 mm
Y axis: 1200 mm
Z axis: 1500 mm
screen-text: deutsch
