KraussMaffei KM300-1000 CX with robot LRX100
Offer from: | 2025-05-20 |
Categorie: | Injection moulding machines |
Manufact./Type: | KM300-1000 CX |
Price: | 18,500.00 € |
Technical data:
Build in: |
2010 |
Operating hours: |
68.000 h |
Photos:
Logistical data:
Location: |
Šenčur, Slovenia |
Description:

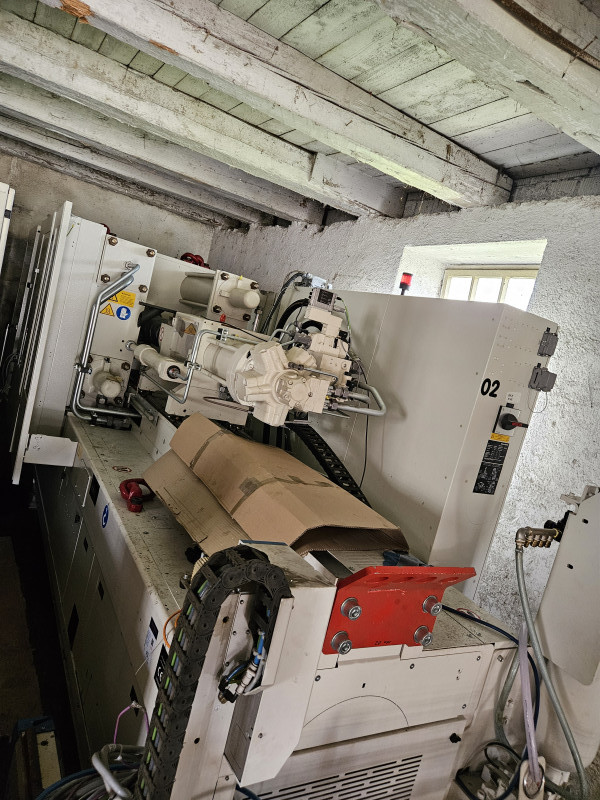

Machine KraussMaffei KM300-1000 CX
Clamping force kN: 3000
Distance between tie bars ( h x v ) mm: 630 x 630
Mould opening stroke mm: 820
Mould height min. mm: 330
Ejector stroke mm: 200
Screw diameter mm: 55 (mixing HPS-M)
L/D ratio: 20
Injection pressure bar: 1904
Stroke volume cm3: 523
Control version: MC5
Screen text: Germany
Condition: Checked, ready to work
Equipment:
- Anti-vibration levelling pads
- Wear resistant plasticizer, surcharge
- 3 x pneumatic valve on moving platen for blow function
- 2 x pneumatic valve on fixed platen for blow function
- Pneumatic control for one hotrunner
- Mechanical robot interface according to EUROMAP 18
- Pressure accumulator for increased injection capacity
- Hydraulic core pull system 2-fold on moving platen
- Hydraulic core pull system 1-fold on fixed platen
- Twin check valves to maintain pressure on hydraulic core pulls
- Pressure relief for hydraulic core pulls
- 2 x water battery 8-fold
- hose connections from water battery to fixed and moving side
- 8 hotrunner control circuits
- BluePower - Monitoring of energy and power
- Graph display and analysis package with 10 graphs
- PV-closed loop control
- Interface for production data consisting of 5 potential free contacts inside the control cabinet
KraussMaffei Linear Robot LRX 100:
- Fully integrated control
- X (horizontal stroke): 3000 mm
- Y (demold stroke): 550 mm
- Z (vertical stroke): 1200 mm telescopic
- Maximum load: 10 kg
- C (pneumatic): 0 - 90 degree
- Safety package for guarding fence
- Vacuum 4 x
- Pressure circuit 4 x
- Control cabinet preparation for connection of conveyor belt
[Description was hidden]
