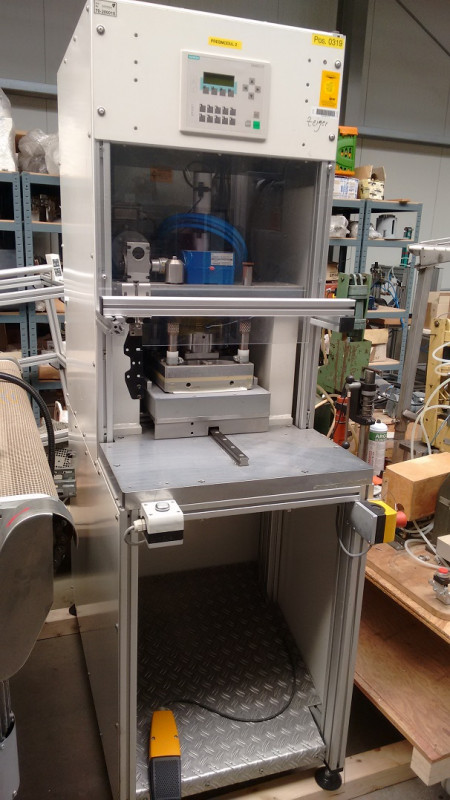

Laboratory heating press Zeiger GmbH

Frequency-controlled laboratory heating press with force measuring device

Pressing force 20 KN / 2 tons
Pressing area 220 * 220 mm
Maximum pressing force at 220 * 220 mm: 41 N / cm²
Year of construction 2006
Hot press with movable lower pressure plate, electric drive with gear reduction, force measurement by means of strain gauge measuring cell
Heating power approx. 1 KW
Temperature at the pressure plate: 120 ° C
Residence time / lamination time: 1 - 10 s
Compressed air connection 6 bar required
Power supply 400 V, 16 A
Sliding table with lower pressure plate and integrated positioning pins, pneumatic drive
Press plates with switchable integrated vacuum channels
EMSR control with PLC, operating display integrated in the front panel of the machine
Side channel pump for creating the vacuum
