Leistritz AG ZSE 50 GL
| Offer from: | 2024-10-09 |
| Categorie: | Extruders and Extrusion plants |
| Manufact./Type: | ZSE 50 GL |
| Price: | n.a. |
Technical data:
| Power: | 37,0 kW |

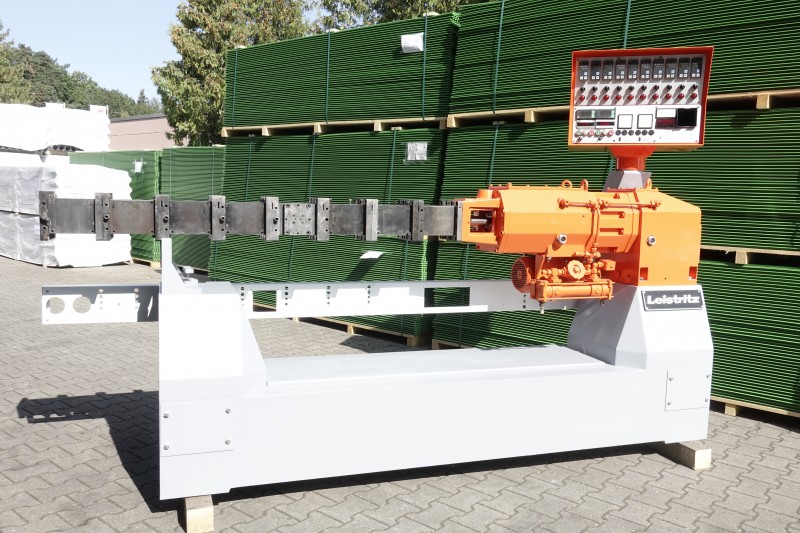

Photos:
Logistical data:
| Location: | Aldorf bei Nürnberg |
Description:
echnical data ZSE 50 GL
Synchronization
center distance of the screws: 43 mm
Screw diameter: 50 mm
Screw functional length: 32 l/D
Screw torque: 1200 Nm
Type of drive: direct current nominal connection motor
Drive power: 37 kW
motor speed: 2200 rpm
Gear ratio: 7,3
Screw speed:300 ~400 rpm clutch
Power transmission: Clutch
Number of heating zones: 7
Heating power: 7
Type of cooling:ZIK (Cylinder Intensive Cooling)
Number of cooling zones: 7
Filling zone cooling: water
Melt pressure: 250 bar (350 bar)
Melting temperature: max. 350°C
Melting height: 1050 mm
Weight: kg
Translated with www.DeepL.com/Translator (free version)
Synchronization
center distance of the screws: 43 mm
Screw diameter: 50 mm
Screw functional length: 32 l/D
Screw torque: 1200 Nm
Type of drive: direct current nominal connection motor
Drive power: 37 kW
motor speed: 2200 rpm
Gear ratio: 7,3
Screw speed:300 ~400 rpm clutch
Power transmission: Clutch
Number of heating zones: 7
Heating power: 7
Type of cooling:ZIK (Cylinder Intensive Cooling)
Number of cooling zones: 7
Filling zone cooling: water
Melt pressure: 250 bar (350 bar)
Melting temperature: max. 350°C
Melting height: 1050 mm
Weight: kg
Translated with www.DeepL.com/Translator (free version)
