warehouse no.: 503472

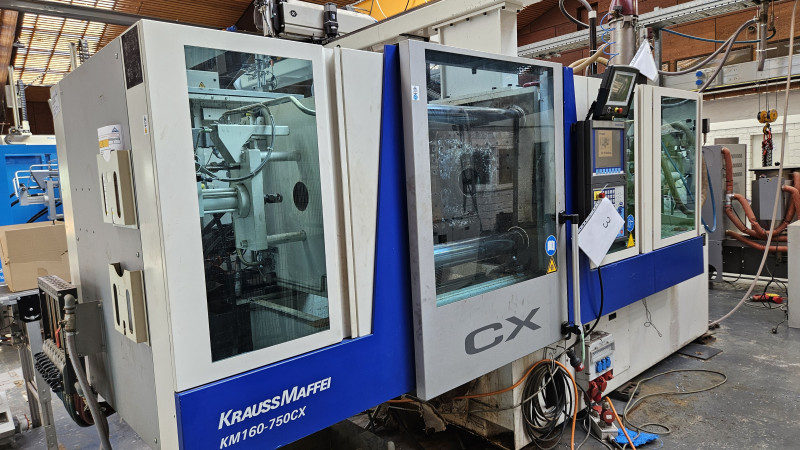

manufacturer: KRAUSS MAFFEI
type: KM 160-750 CX
controller: MC5
year of construction: 2007
operation hours: 25215 h

technical data clamping unit
clamping force: 1600 kN
distance between tie-bars h x v: 520 x 520 mm
size of mould plates h x v: 820 x 845 mm
min. mould height: 300 mm
max. open daylight: 950 mm
opening stroke: 650 mm
ejector stroke: 150 mm
ejector force: 22 kN
centering diameter of moving platen: 125 mm
centering diameter of fixed platen: 160 mm
weight of mould: 1862 kg

technical data injection unit
screw diameter: 45 mm
swept volume: 318 ccm
injection pressure: 2336 bar
screw length: 22 l/d
screw speed: 355 min
plasticising rate: 39 g/s PS
injection rate into the open: 143 g/s PS
number of heating zones: 6

measures & weight
measures of machine l x w x h: 5.1m x 1.6m x 2.1m
total weight: 6600KG

equipment included
screen text german
screen text english
CEE-socket 16A
core pulling hydraulically 2x
machine incl. belt conveyor
machine incl. Handling
machine incl. safety fencing
machine with material hopper
Anti vibration mounts
interface EUROMAP 67
wear-resistant injection unit
mould heating 6x

technical data robot-system
handling type: Linear
manufacture: Krauss Maffei
controller: LRX S100-1321
year of construction: 2008
X axis: 550 mm
Y axis: 1200 mm
Z axis: 2500 mm
total weight: 280 kg
