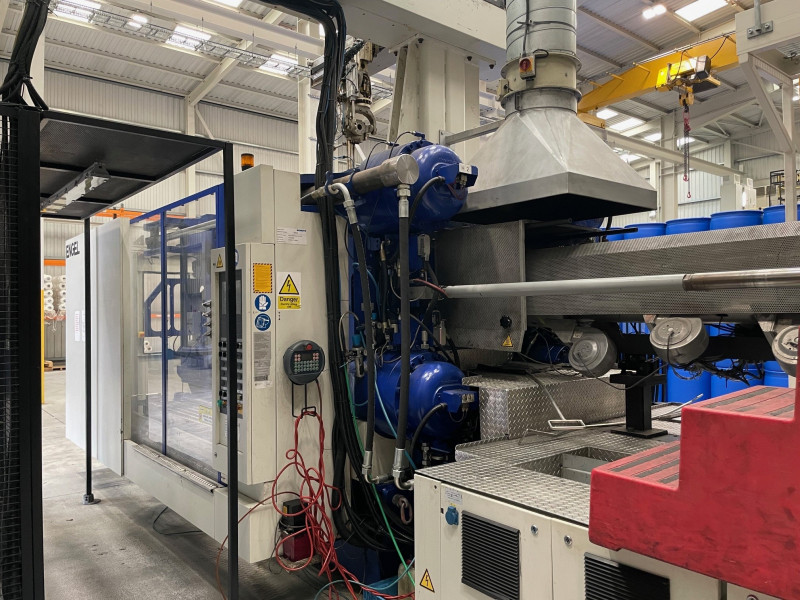

warehouse no.: 503583
manufacturer: ENGEL
type: ES 16050-800 DUO
controller: CC 100
year of construction: 2007

technical data clamping unit
clamping force: 8000 kN
distance between tie-bars h x v: 1170 x 1000 mm
size of mould plates h x v: 1550 x 1470 mm
min. mould height: 500 mm
max. mould height: 1100 mm
max. open daylight: 2100 mm
opening stroke: 1600 mm
ejector stroke: 300 mm
ejector force: 180 kN
centering diameter of moving platen: 200 mm
centering diameter of fixed platen: 200 mm
weight of mould: 21600 kg

technical data injection unit
screw diameter: 135 mm
swept volume: 8870 ccm
injection pressure: 1640 bar
screw length: 22 l/d
screw stroke: 620 mm
screw speed: 100 min
number of heating zones: 7
nozzle stroke: 950 mm

measures & weight
measures of machine l x w x h: 11.81m x 3.2m x 2.9m
total weight: 51000KG

technical data robot-system
handling type: Linear
manufacture: ENGEL
controller: ERC 64/1-F
year of construction: 2007
handling weight: 25 kg
X axis: 1300 mm
Y axis: 2200 mm
Z axis: 4760 mm
