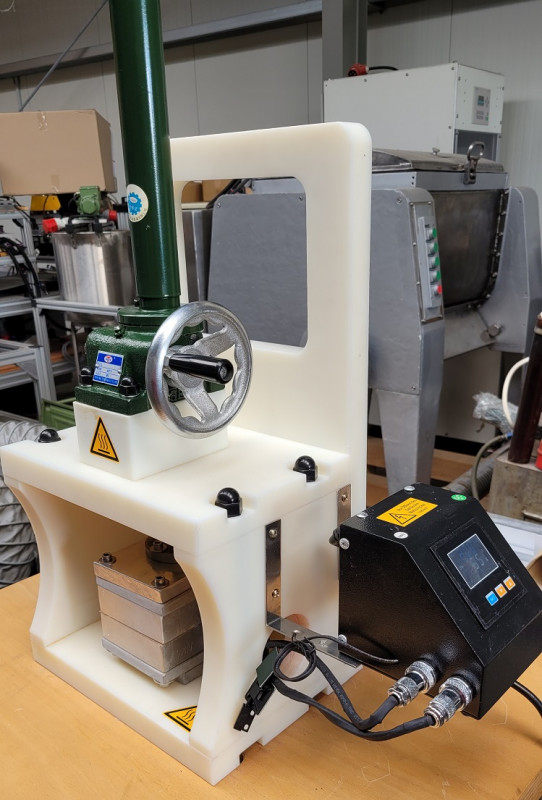

Portable manual heating press Reitz MHSP5H
- Manual lifting spindle press Static pressing force 5 KN (0.5 ton)
- Portable press frame made of polyamide PA 6G
- Manual spindle lifting gear with spindle 20 mm, pitch 5 mm
- With handwheel diameter 120 mm and handle
- Gear reduction 1:10, 0.5 mm spindle travel per handwheel rotation, therefore only very
little manual force is required for high pressure.
- Table size 100 X 150 mm
- Clear width 60 mm
- Stamp size diameter 70 mm with 4 holes 8 mm for attaching the
heating plate
- Very easy operation thanks to spindle and worm gear
- Total weight approx. 30 kg
With 2 electric aluminum heating plates 1200 watts, heating surface approx. 150 X 100
mm up to 250°C, connection 230 V. With sensor PT100 and temperature control.
Pressure-resistant insulation plates at the top and bottom for use in presses.
Suitable for pressing, welding and gluing.
