warehouse no.: 503604
manufacturer: ARBURG
type: Allrounder 630 S 2500-800
controller: Selogica
year of construction: 2012
operation hours: 43331 h

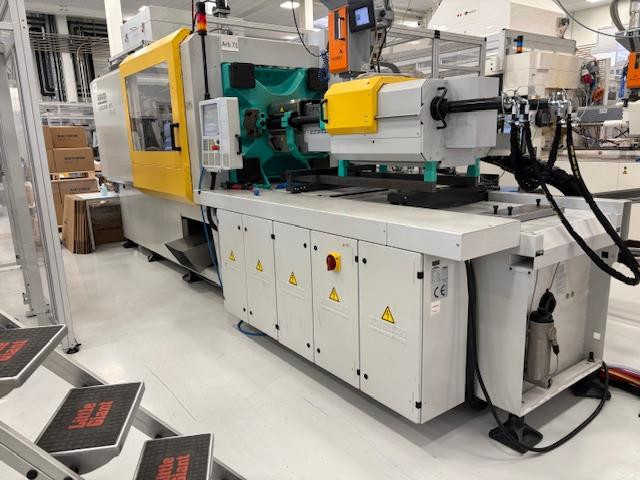

Used ARBURG Allrounder 630 S 2500-800 injection molding machine. This machine offers an excellent blend of performance and precision with a clamping force of 2500 kN and an injection unit of 800. Perfect for demanding production requirements and in impeccable condition. Take advantage of this opportunity to enhance your production capacity.
Contact us for more details and secure this reliable machine!

technical data clamping unit
clamping force: 2500 kN
distance between tie-bars h x v: 630 x 630 mm
size of mould plates h x v: 900 x 900 mm
min. mould height: 300 mm
max. mould height: 700 mm
max. open daylight: 1300 mm
opening stroke: 600 mm
ejector stroke: 90 mm
ejector force: 225 kN
centering diameter of moving platen: 160 mm
centering diameter of fixed platen: 160 mm
weight of mould: 3800 kg

technical data injection unit
screw diameter: 45 mm
swept volume: 318 ccm
injection pressure: 2470 bar
screw length: 22 l/d
screw stroke: 200 mm
screw speed: 60 min
screw torque: 1000 N
plasticising rate: 242 g/s PS
injection rate into the open: 291 g/s PS
number of heating zones: 7
nozzle stroke: 400 mm

measures & weight
measures of machine l x w x h: 6.12m x 1.94m x 2.4m
total weight: 12230KG

equipment included
screen text german
CEE-socket 16A
complact flash drive
core pulling hydraulically 2x
core pulling pneum. 3 x
machine incl. belt conveyor
machine incl. Handling
machine incl. safety fencing
machine without material hopper
Anti vibration mounts
mould heating 12x

technical data robot-system
handling type: Linearroboter
manufacture: Arburg
controller: Multilift

year of construction: 2012
X axis: 400 mm
Z axis: 1400 mm
C axis rotation: 90 °
total weight: 450 kg
