warehouse no.: 503409
manufacturer: ARBURG

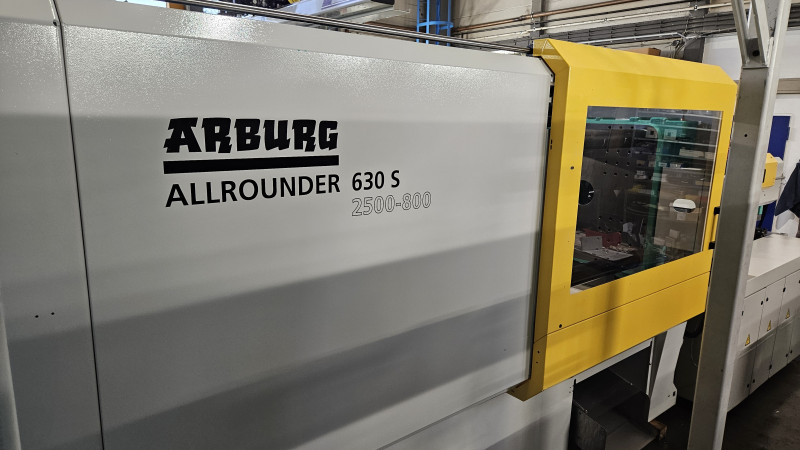

type: Allrounder 630 S 2500-800
controller: Selogica
year of construction: 2012
operation hours: 37830 h

Used ARBURG Allrounder 630 S 2500-800 injection molding machine. This machine offers an excellent blend of performance and precision with a clamping force of 2500 kN and an injection unit of 800. Perfect for demanding production requirements and in impeccable condition. Take advantage of this opportunity to enhance your production capacity.

Contact us for more details and secure this reliable machine!

technical data clamping unit
clamping force: 2500 kN
distance between tie-bars h x v: 630 x 630 mm
size of mould plates h x v: 900 x 900 mm
min. mould height: 300 mm
max. mould height: 700 mm
max. open daylight: 1300 mm
opening stroke: 600 mm
ejector stroke: 225 mm
ejector force: 90 kN
centering diameter of moving platen: 160 mm
centering diameter of fixed platen: 160 mm

technical data injection unit
screw diameter: 50 mm
swept volume: 392 ccm
injection pressure: 2000 bar
screw length: 20 l/d
screw stroke: 200 mm
screw speed: 60 min
screw torque: 1000 N
injection rate into the open: 300 g/s PS
number of heating zones: 8
nozzle stroke: 400 mm

measures & weight
measures of machine l x w x h: 6.4m x 1.95m x 2.21m
total weight: 12140KG

equipment included
screen text german
screen text english
CEE-socket 16A
CompactFlash interface for data storage
core pulling hydraulically 1x
air valve 2x
machine incl. water flow regulator
machine without material hopper
Anti vibration mounts
interface robot EUROMAP 67
interface OPC
Schuko-socket 10A
selection unit
mould heating 12x
