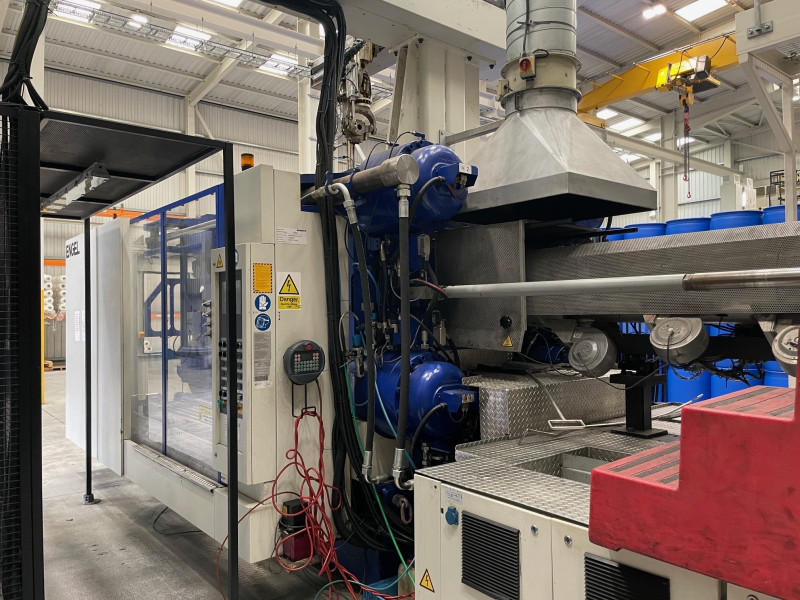

warehouse no.: 503583
manufacturer: ENGEL
type: ES 16050-800 DUO
controller: CC 100
year of construction: 2007

technical data clamping unit
clamping force: 8000 kN
distance between tie-bars h x v: 1170 x 1000 mm
size of mould plates h x v: 1550 x 1470 mm
min. mould height: 500 mm
max. mould height: 1100 mm
max. open daylight: 2100 mm
opening stroke: 1600 mm
ejector stroke: 300 mm
ejector force: 180 kN
centering diameter of moving platen: 200 mm
centering diameter of fixed platen: 200 mm
weight of mould: 21600 kg

technical data injection unit
screw diameter: 135 mm
swept volume: 8870 ccm
injection pressure: 1640 bar
screw length: 22 l/d
screw stroke: 620 mm
screw speed: 100 min
number of heating zones: 7
nozzle stroke: 950 mm

measures & weight
measures of machine l x w x h: 11.81m x 3.2m x 2.9m
total weight: 51000KG

equipment included
Screen text czech
CEE-socket 32A
Cascade control hydraulically 6x
core pulling hydraulically 2x
core pulling hydraulically 2x
air valve fixed platen
machine incl. Handling
machine incl. water flow regulator
machine without material hopper
Anti vibration mounts
interface for handling
interface for temperature control units
mould heating 12x
mould heating 8x

technical data robot-system
handling type: Linear
manufacture: ENGEL
controller: ERC 64/1-F
year of construction: 2007
handling weight: 25 kg
X axis: 1300 mm
Y axis: 2200 mm
Z axis: 4760 mm
