warehouse no.: 503394
manufacturer: ENGEL
type: ES 1800-350 HL
controller: CC100
year of construction: 2004
operation hours: 69000 h

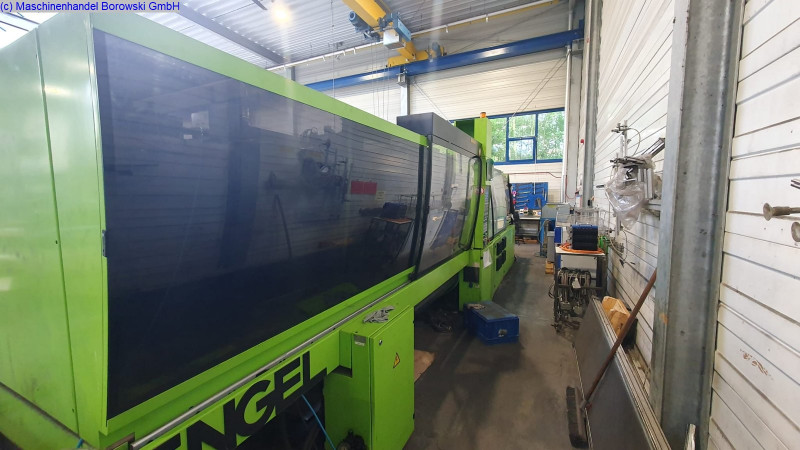

The hydraulic pump was replaced in 2017 and has run for approximately 19,500 operating hours.We offer a high-quality, used, and technically inspected injection molding machine, model ENGEL ES 1800-350 HL, including the ENGEL ER-HLI 81 robot. This machine combines precise manufacturing with the highest efficiency, ideal for demanding plastic applications.

The ENGEL ES 1800-350 HL stands for robust construction, durability, and reliable performance. The integrated ER-HLI 81 robot enables automated, precise part extraction and fast cycle times, allowing for seamless integration into your production processes and ensuring maximum productivity.

Advantages at a Glance:
Used but inspected: Technically inspected and ready-to-use machine
Efficient Automation: Integrated robot for optimal process workflows
Reliability and Precision: Meets the highest quality and accuracy standards
Cost-Effective: Certified performance in a used machine
Versatility: Ideal for a wide range of plastic applications across various industries
Hydraulic pump replaced: approx. 19,500 operating hours
Technical Details and Applications
The ENGEL ES 1800-350 HL features a clamping force range of 1800 kN and an injection weight of up to 350 g. This machine is perfect for producing high-quality plastic parts used in sectors such as the automotive industry, electronics, medical technology, and consumer goods. Its sturdy design and intuitive control system ensure consistent production quality.

The ER-HLI 81 robot enables automated and efficient part extraction, optimizing both quality and productivity. This boosts output and reduces overall production costs, making it an ideal investment for manufacturers aiming to maximize efficiency.

Why Invest in Used Machinery?
Used and technically inspected machines, such as the ENGEL ES 1800-350 HL, provide a cost-effective alternative to purchasing new equipment. Benefit from high quality at a significantly lower price while securing reliable production technology with a short amortization period.

Choose performance and quality at a fair price! Our expert team is happy to advise you on this machine and other used, technically inspected plastic production machines. Contact us for individual advice and a no-obligation quote – we look forward to your inquiry.

technical data clamping unit
clamping force: 3500 kN
size of mould plates h x v: 1050 x 980 mm
min. mould height: 350 mm
max. open daylight: 1300 mm
opening stroke: 950 mm
ejector stroke: 250 mm
ejector force: 83 kN
weight of mould: 2500 kg

technical data injection unit
screw diameter: 70 mm
swept volume: 1039 ccm
injection pressure: 1441 bar
screw length: 20 l/d
screw stroke: 270 mm
screw speed: 226 min
injection rate into the open: 386 g/s PS
number of heating zones: 5
nozzle stroke: 500 mm

measures & weight
measures of machine l x w x h: 7.98m x 2.22m x 2.57m
total weight: 30750KG

equipment included
screen text german
core pulling hydraulically 2x
machine incl. belt conveyor
machine incl. Handling
machine incl. safety fencing
machine without material hopper
Anti vibration mounts
technical data robot-system
handling type: Handling
manufacture: ENGEL
controller: ER-HLI 81
year of construction: 2004
