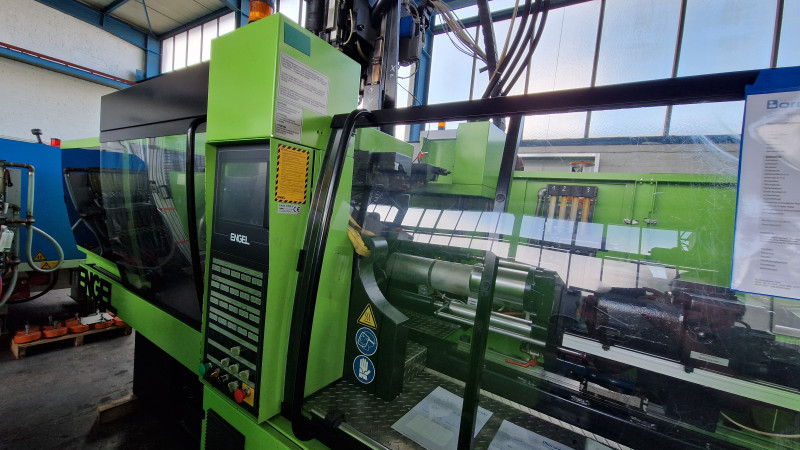

ENGEL VICTORY 330H/80V/90 combi
warehouse no.: 503504
manufacturer: ENGEL
type: VICTORY 330H-80V-90 combi
controller: CC200
year of construction: 2007
operation hours: 47791 h

We offer here a 2-component ENGEL injection moulding machine with a 2-station rotary table RD 700 with hydraulic drive (hydraulic motor/proportional valve) Rotary movement 180 degrees swinging against fixed stop.

The rotary unit is 6-way R3/8 inch for a maximum of 3 media circuits, medium max. 120 degrees C with 2 water circuits and 1 hydraulic circuit: 2W1H.

The 2nd vertical injection unit 80V is equipped with a 22 mm plastification.
The injection volume is 38 ccm with 1590 bar injection pressure.

technical data clamping unit
clamping force: 900 kN
size of mould plates h x v: 740 x 680 mm
min. mould height: 243 mm
max. open daylight: 743 mm
opening stroke: 500 mm
round table diameter: 700 mm
centering diameter of fixed platen: 125 mm

technical data injection unit
screw diameter: 35 mm
swept volume: 154 ccm
injection pressure: 1600 bar
screw length: 20 l/d
screw stroke: 160 mm
screw speed: 400 min
plasticising rate: 21 g/s PS
injection rate into the open: 151 g/s PS
number of heating zones: 4
nozzle stroke: 250 mm

measures & weight
measures of machine l x w x h: 4.5m x 1.45m x 2.7m
total weight: 9300KG

equipment included
screen text german
screen text english
core pulling hydraulically 1x
machine with rotary index table
machine incl. water flow regulator
machine without material hopper
Anti vibration mounts
interface for ejector plates safety
Schuko-socket 10A
mould heating 8x
Injection moulding machine for two components
