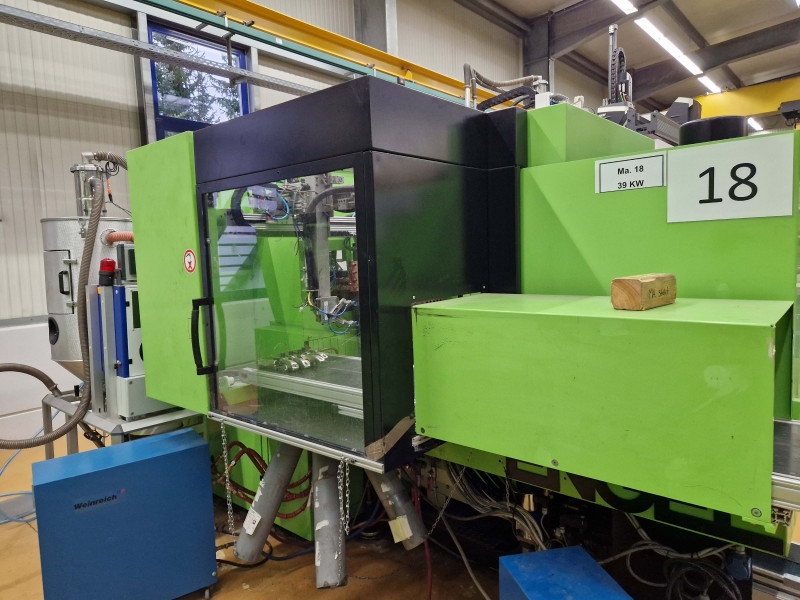

ENGEL Victory 200-80 Tech
warehouse no.: 503561
manufacturer: ENGEL
type: VICTORY 200-80 Tech
controller: CC 100
year of construction: 2005
operation hours: 76988 h

technical data clamping unit
clamping force: 800 kN
size of mould plates h x v: 670 x 600 mm
min. mould height: 250 mm
max. open daylight: 700 mm
opening stroke: 450 mm
ejector stroke: 100 mm
ejector force: 40 kN
centering diameter of moving platen: 125 mm
centering diameter of fixed platen: 125 mm
weight of mould: 675 kg

technical data injection unit
screw diameter: 30 mm
swept volume: 99 ccm
injection pressure: 1450 bar
screw length: 20 l/d
screw stroke: 140 mm
plasticising rate: 17 g/s PS
injection rate into the open: 150 g/s PS
number of heating zones: 4
nozzle stroke: 200 mm

measures & weight
measures of machine l x w x h: 4.05m x 1.93m x 2.2m
total weight: 5200KG

equipment included
screen text german
CEE-socket 16A
core pulling hydraulically 1x
machine incl. belt conveyor
machine incl. Handling
machine incl. water flow regulator
machine without material hopper
Anti vibration mounts
Schuko-socket 10A

technical data robot-system
handling type: Linearhandling
manufacture: Engel
controller: ER-HLI 31 VC
year of construction: 2005
handling weight: 2 kg
screen-text: deutsch
total weight: 250 kg
