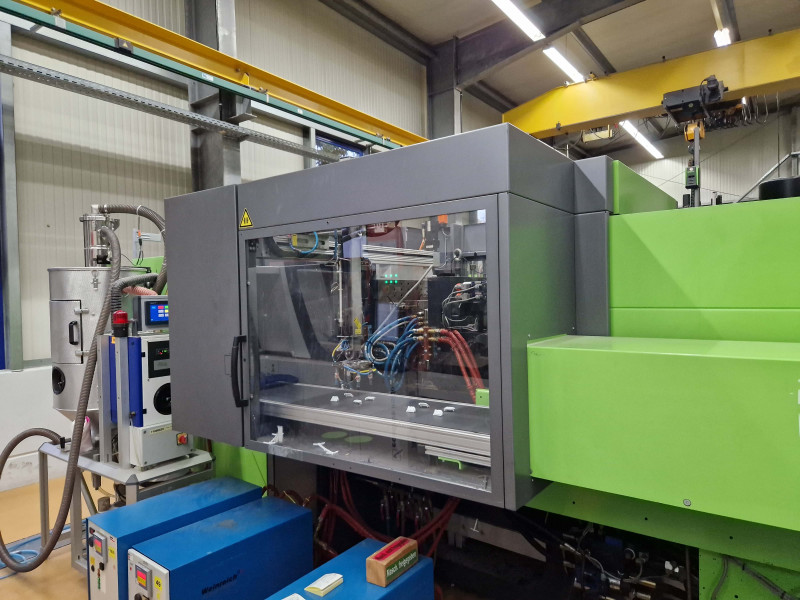

ENGEL Victory 330-120 Tech
warehouse no.: 503558
manufacturer: ENGEL
type: Victory 330-120 Tech
controller: CC100
year of construction: 2007
operation hours: 68651 h

technical data clamping unit
clamping force: 1200 kN
size of mould plates h x v: 740 x 680 mm
min. mould height: 300 mm
max. open daylight: 800 mm
opening stroke: 500 mm
ejector stroke: 130 mm
ejector force: 40 kN
centering diameter of moving platen: 125 mm
centering diameter of fixed platen: 125 mm
weight of mould: 825 kg

technical data injection unit
screw diameter: 35 mm
swept volume: 154 ccm
injection pressure: 1600 bar
screw length: 20 l/d
screw stroke: 160 mm
screw speed: 400 min
injection rate into the open: 151 g/s PS
number of heating zones: 4
nozzle stroke: 250 mm

measures & weight
measures of machine l x w x h: 4.5m x 2.1m x 2.1m
total weight: 7300KG

equipment included
screen text german
CEE-socket 16A
core pulling hydraulically 2x
machine incl. belt conveyor
machine incl. safety fencing
machine without material hopper
Anti vibration mounts
interface for ejector plates safety
Schuko-socket 10A

technical data robot-system
handling type: Linear
manufacture: ENGEL
controller: ER-HLI41VC
year of construction: 2007
