warehouse no.: 503240
manufacturer: ENGEL
type: VICTORY 650-120 Tech
controller: EC200 A02
year of construction: 2008
operation hours: 59934 h

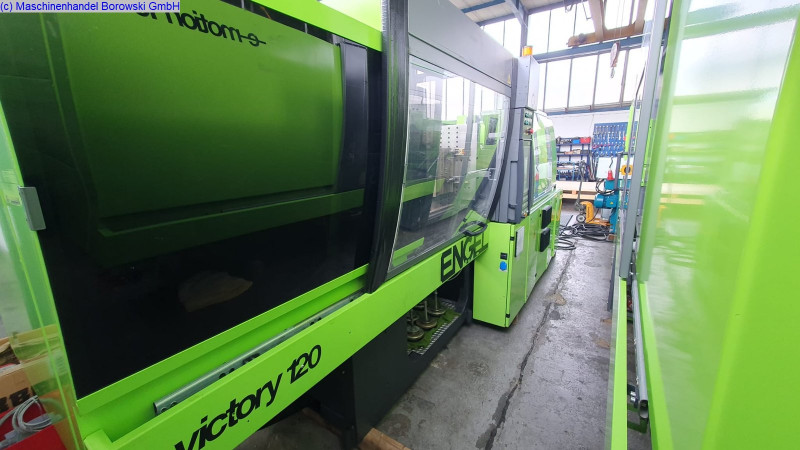

Englisch: Boost your production efficiency and quality with the ENGEL Victory 650-120 Tech injection molding machine!
This state-of-the-art machine, with its tie-bar-less design, is ideal for a wide range of applications in plastics processing. The tie-bar-less clamping unit allows for maximum flexibility in mold size and configuration, making it perfect for large or complex molds. With a clamping force of 1200 kN, the machine ensures stability and precision to meet the most demanding requirements.
Its screw diameter of 45 mm guarantees consistent material flow, while the theoretical shot volume of 318 cm³ provides versatility for producing various plastic parts. The ENGEL Victory series is renowned for its energy-efficient performance and durability. The 650-120 Tech offers cutting-edge technology that reduces production costs while delivering top-quality results. It’s the perfect choice for applications in industries such as automotive, medical technology, packaging, and more. Invest in your production future and enhance your competitiveness with this versatile and reliable injection molding machine

technical data clamping unit
clamping force: 1200 kN
size of mould plates h x v: 740 x 680 mm
min. mould height: 300 mm
max. open daylight: 800 mm
opening stroke: 507 mm
ejector stroke: 130 mm
ejector force: 40 kN
centering diameter of moving platen: 125 mm
centering diameter of fixed platen: 125 mm
weight of mould: 825 kg

technical data injection unit
screw diameter: 45 mm
swept volume: 318 ccm
injection pressure: 1525 bar
screw length: 20 l/d
screw stroke: 200 mm
screw speed: 290 min
injection rate into the open: 220 g/s PS
number of heating zones: 5
nozzle stroke: 300 mm

measures & weight
measures of machine l x w x h: 4.86m x 1.5m x 2.1m
total weight: 7600KG

equipment included
screen text german
CEE-socket 16A
core pulling hydraulically 2x
air valve 2x
machine incl. water flow regulator
machine without material hopper
Anti vibration mounts
Schuko-socket 10A
mould heating 8x
