warehouse no.: 503470
manufacturer: KRAUSS MAFFEI
type: KM 120-380 EX
controller: MC5
year of construction: 2008
operation hours: 10113 h

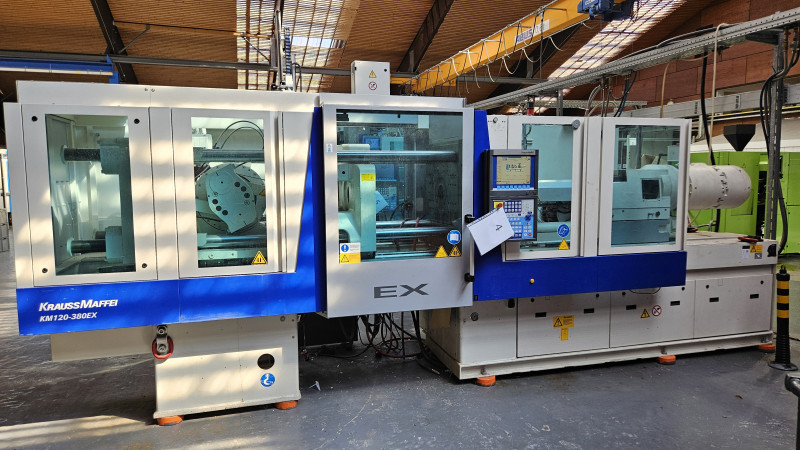

Boost your production productivity and precision with the KRAUSS MAFFEI KM 120-380 EX Tech injection molding machine!
This machine combines cutting-edge technology with proven reliability to serve a wide range of applications in plastics processing.
With a clamping force of 1200 kN, it ensures optimal stability and enables the production of highly accurate components.
The screw diameter of 35 mm ensures efficient material flow, while the theoretical shot volume of 156 cm³ provides versatile manufacturing possibilities.
The machine's MC5 control system offers an intuitive and user-friendly interface for maximum control over the production process.
The KRAUSS MAFFEI KM 120-380 EX Tech is renowned for its energy efficiency and durability.
It is ideal for industries such as automotive, medical technology, packaging, and many more where precision and efficiency are essential.
Take advantage of a robust and versatile machine that reduces production costs while enhancing the quality of your products.
The KRAUSS MAFFEI KM 120-380 EX Tech – your solution for future-proof plastics manufacturing.

technical data clamping unit
clamping force: 1200 kN
distance between tie-bars h x v: 470 x 470 mm
size of mould plates h x v: 780 x 735 mm
min. mould height: 200 mm
max. mould height: 450 mm
max. open daylight: 850 mm
opening stroke: 400 mm
ejector stroke: 150 mm
ejector force: 22 kN
centering diameter of moving platen: 160 mm
centering diameter of fixed platen: 125 mm
weight of mould: 1485 kg

technical data injection unit
screw diameter: 35 mm
swept volume: 156 ccm
injection pressure: 2429 bar
screw length: 23 l/d
screw speed: 289 min
plasticising rate: 27 g/s PS
injection rate into the open: 477 g/s PS
number of heating zones: 5

measures & weight
measures of machine l x w x h: 6m x 1.7m x 2.19m

total weight: 9700KG
equipment included
screen text german
screen text english
CEE-socket 16A
core pulling hydraulically 2x
machine incl. water flow regulator
machine without material hopper
Anti vibration mounts
electric interface for handling units according to Euromap 12
Schuko-socket 10A
