warehouse no.: 503393
manufacturer: KRAUSS MAFFEI

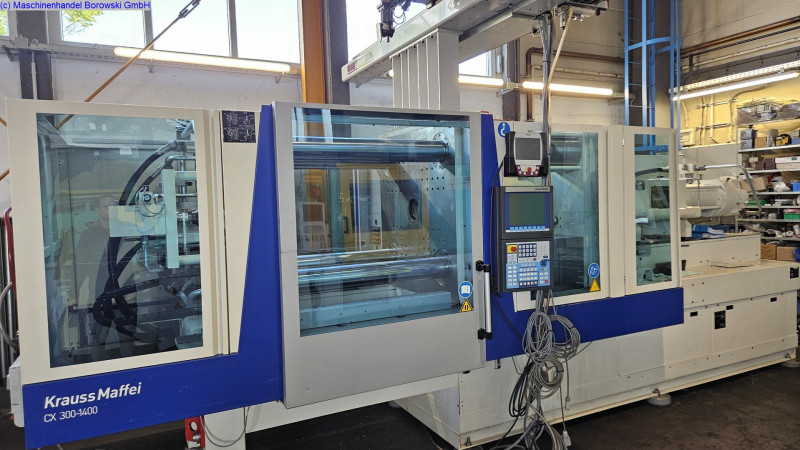

type: KM 300-1400 CX
controller: MC5
year of construction: 2011
operation hours: 78454 h

The CX series from KraussMaffei offers tailored solutions for a wide range of customers, from contract molders to large technology companies. With a fully hydraulic two-platen design, the CX series is particularly compact, efficient, and flexible.

Highlights of the CX Series:
Two-platen concept with self-supporting clamping unit
Intelligent energy management for sustainable production
Modular design for maximum flexibility
Powerful base for advanced technologies and specific adaptations
The CX machines are equipped with a screw diameter of 60 mm, providing high precision in the production process. A video of the dry run can be found further down the page. Additionally, the Wittmann W833 handling system is included, enabling seamless integration into your production environment.

technical data clamping unit
clamping force: 3000 kN
distance between tie-bars h x v: 630 x 630 mm
size of mould plates h x v: 995 x 1050 mm
min. mould height: 330 mm
max. open daylight: 1150 mm
opening stroke: 820 mm
ejector stroke: 200 mm
ejector force: 58 kN
centering diameter of moving platen: 160 mm
centering diameter of fixed platen: 160 mm
weight of mould: 3430 kg

technical data injection unit
screw diameter: 60 mm
swept volume: 678 ccm
injection pressure: 2007 bar
screw length: 20 l/d
screw speed: 260 min
screw torque: 84 N
injection rate into the open: 311 g/s PS
number of heating zones: 6

measures & weight
measures of machine l x w x h: 6.5m x 2.2m x 2.3m
total weight: 15000KG

equipment included
screen text german
CEE-socket 16A
pressure accumulator for uprated injection speed
core pulling hydraulically 2x
Machine without Handling
machine without material hopper
Anti vibration mounts
interface robot EUROMAP 67
interface for handling
Schuko-socket 10A
