warehouse no.: 503232

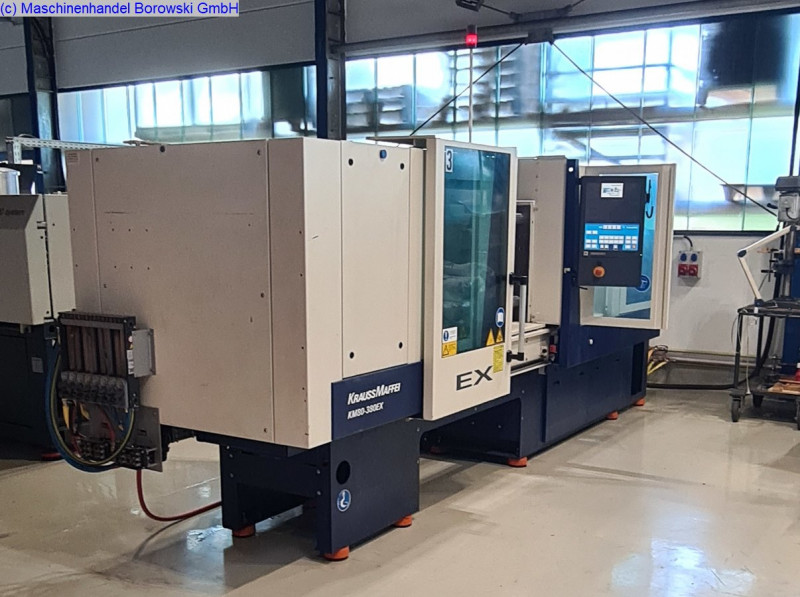

manufacturer: KRAUSS MAFFEI
type: KM 80-380 EX
controller: MC5
year of construction: 2008
operation hours: 49673 h

The EX series is a fully electric machine concept for clamping forces ranging from 500 to 2,400 kN. This series offers high technical availability with minimal maintenance and servicing, as well as a machine concept that achieves high productivity with low energy consumption. Minimal dry running times and high injection speeds make the EX series exceptionally fast.

At the heart of KraussMaffei's fully electric injection molding machine is the unique Z-lever, symbolizing short cycle times and high precision. This innovative mechanism enables not only efficient material feeding but also precise control of the injection and clamping movements. This ensures not only short production cycles but also outstanding quality for the manufactured parts.

With the KRAUSS MAFFEI KM 80-380 EX, you receive not only a used injection molding machine but also state-of-the-art technology and proven performance. Trust Maschinenhandel Borowski GmbH to find the ideal solution for your production requirements. Contact us now to learn more about this machine and our extensive range of used injection molding machines.

technical data clamping unit
clamping force: 800 kN
distance between tie-bars h x v: 520 x 420 mm
size of mould plates h x v: 640 x 740 mm
min. mould height: 300 mm
max. open daylight: 790 mm
ejector stroke: 100 mm
ejector force: 22 kN
centering diameter of moving platen: 125 mm
centering diameter of fixed platen: 125 mm

technical data injection unit
screw diameter: 35 mm
swept volume: 154 ccm
injection pressure: 2429 bar
screw length: 23 l/d
screw speed: 477 min
injection rate into the open: 289 g/s PS
number of heating zones: 5

measures & weight
measures of machine l x w x h: 5.35m x 1.7m x 2m
total weight: 6500KG

equipment included
screen text german
CEE-socket 16A
air valve 1x
machine with material hopper
machine incl. water flow regulator
Anti vibration mounts
interface robot EUROMAP 67
interface USB
Schuko-socket 10A
mould heating 24x
