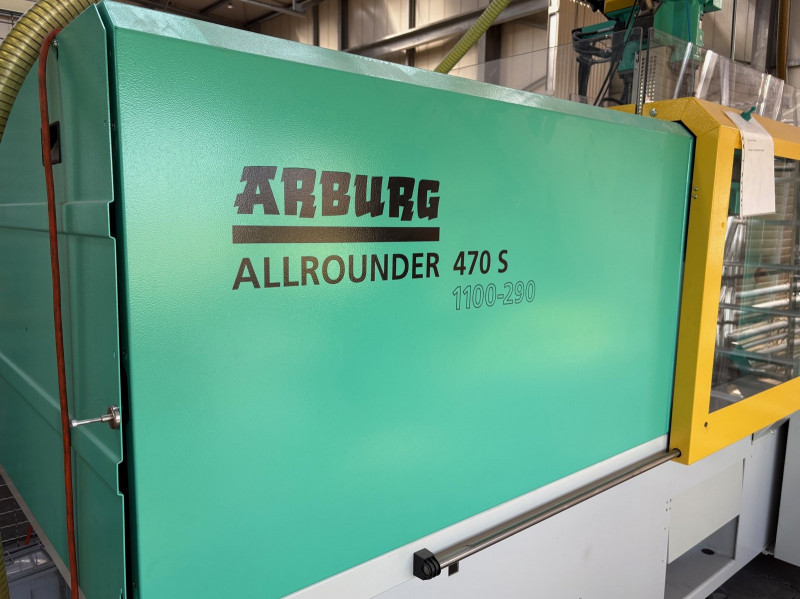

Arburg Allrounder 470 S 1100-290/100 2K + KUKA KR6
| Offer from: | 2026-09-23 |
| Categorie: | Injection moulding machines |
| Manufact./Type: | Allrounder 470 S 1100-290/100 2K |
| Price: | n.a. |
Technical data:
| Build in: | 2017 |
| Operating hours: | 21.600 h |
Photos:
Logistical data:
| Location: | Germany |
Description:
Clamping force: 110 t (1100 kN)
Year of construction: 2017
Operating hours: approx. 21,600 h
Injection unit 1: 290 (horizontal), screw 35 mm, stroke volume 144 cm3, shot weight 132 g PS, injection pressure 2000 bar
Injection unit 2: 100 (vertical, injection into the parting line)
Control: Selogica direct with 15" touchscreen
Tie-bar clearance: 470 x 470 mm
Min. mould height: 350 mm
Opening stroke: 450 mm
Ejector stroke: 150 mm
Total connected load: 86.5 kW, 400 V / 50 Hz
Equipment:
- Processed only ABS and PP so far
- Hydraulic accumulator technology (100 l), injection during mould closing
- Control for hydraulic rotary unit + 3 core pull controls
- Hydraulic ejector, air blow unit
- 6 heating control zones for mould/hot runner
- Cooling water manifold with 6 circuits
- 100 mm tie bar extension, machine raised by 100 mm
- KUKA KR6 robot (handling via Selogica) with safety fence
Low usage, dry run demonstration possible. Location: Germany.
Year of construction: 2017
Operating hours: approx. 21,600 h
Injection unit 1: 290 (horizontal), screw 35 mm, stroke volume 144 cm3, shot weight 132 g PS, injection pressure 2000 bar
Injection unit 2: 100 (vertical, injection into the parting line)
Control: Selogica direct with 15" touchscreen
Tie-bar clearance: 470 x 470 mm
Min. mould height: 350 mm
Opening stroke: 450 mm
Ejector stroke: 150 mm
Total connected load: 86.5 kW, 400 V / 50 Hz
Equipment:
- Processed only ABS and PP so far
- Hydraulic accumulator technology (100 l), injection during mould closing
- Control for hydraulic rotary unit + 3 core pull controls
- Hydraulic ejector, air blow unit
- 6 heating control zones for mould/hot runner
- Cooling water manifold with 6 circuits
- 100 mm tie bar extension, machine raised by 100 mm
- KUKA KR6 robot (handling via Selogica) with safety fence
Low usage, dry run demonstration possible. Location: Germany.
