warehouse no.: 503020

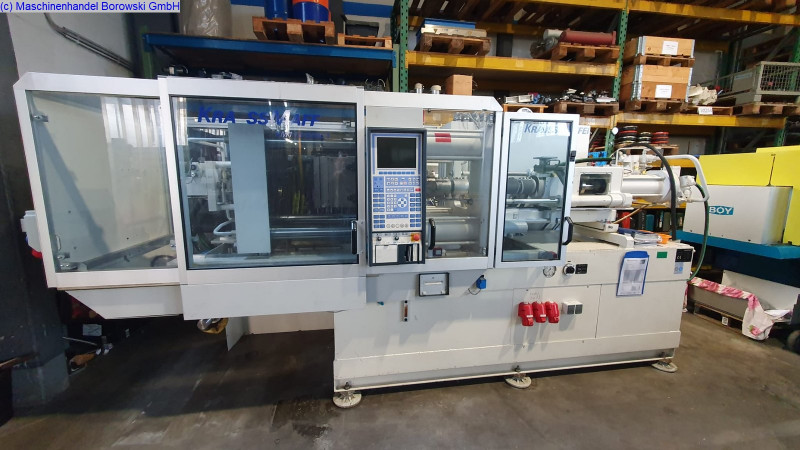

manufacturer: KRAUSS MAFFEI
type: KM 110-520 C1
controller: MC4
year of construction: 2003

clamping force: 1100 kN
distance between tie bars h:: 470 mm
distance between tie bars v:: 470 mm
size of mould plates h: 745 mm
size of mould plates v: 770 mm
min. mould height: 300 mm
max. open daylight: 900 mm
opening stroke: 600 mm

screw diameter: 40 mm
swept volume: 217 ccm
injection pressure: 2377 bar

measures of machine lxbxh: 4.4m x 1.5m x 2.12m
total weight: 6000KG

equipment included:
screen text german
CEE-socket 16A
CEE-socket 32A
core pulling hydraulically 2x
air valve moveable WAP
machine without material hopper
machine without water flow regulator
Anti vibration mounts
electric interface for handling units according to Euromap 12
interface for handling
Schuko-socket 10A
