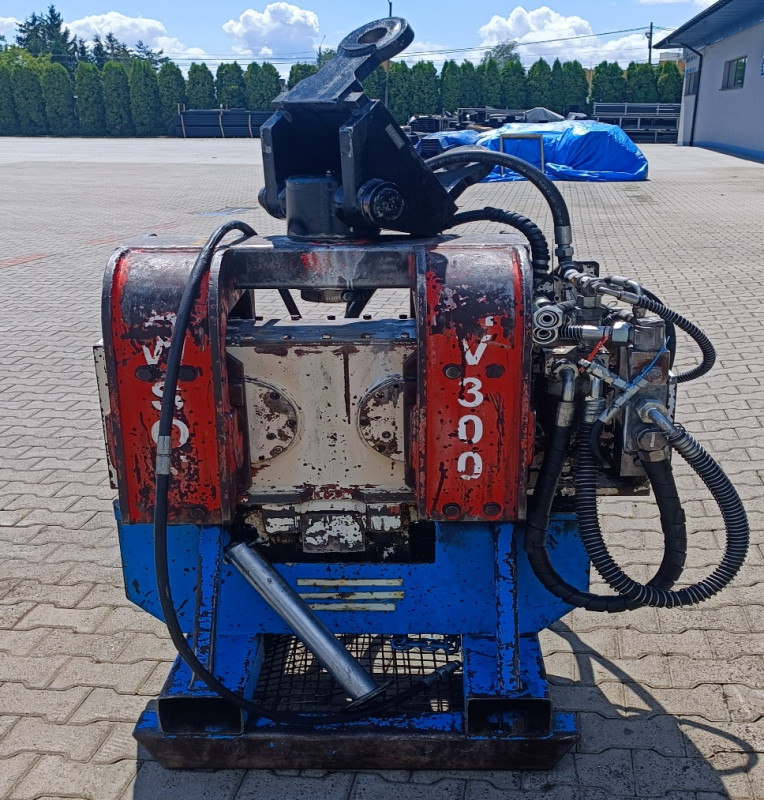

The item for sale is a Dawson EMV 300 vibro hammer. The hammer has undergone a general overhaul. The following parts have been replaced:
1. Hydraulic motor
2 O'ring 206-223-4470, s/n 4076.
3. Valve/BLOW-OFF H00598
4. Vent/breather plug
5. Sequential valve seal kit
6. Sequential valve cartridge
7. Lifting chain and chain clamp cap screw OM10-135-02.
8. Bushing 18x100 TLR368
9. Nyloc Nut M10 OM10.000.11
10 Podkładka M10 OM10.000.26
11. Lifting chain 10, 27 links TLR361.
12. 10mm chain holder TLR360
13. Chain connector G10-8, TLR362.
14. Gear oil 80W90
15. Hydraulic hoses
16 Zawór kontrolny uchwytu
17. Bronze yoke bushing
18. Sling

TECHNICAL DATA:

Static torque: 4.6 kgm 400 in lbs

Frequency: 2400 Revolutions per minute (RPM)

Centrifugal force: 300 KN 67,420 lbs.F

Minimum oil flow rate: 130 L/min 35 gpm

Clamping force: 36 tons

Maximum pushing force: 15,000 kg 33,000 lbs
