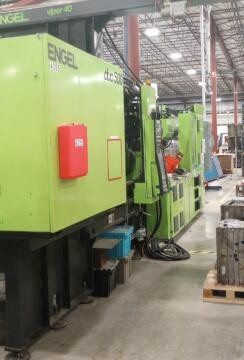

GMB#50108 (2009) 550 TON ENGEL DUO 5550/550 PICO US Injection Molding Machine in USA

BRAND ENGEL INCLUDES A VIPER 40 ROBOT

MODEL DUO 5550/550 PICO US

YEAR 2009

TONNAGE 550 TON (550 TON (DUO 5550/550 PICO US))

SHOT SIZE 88.9 oz.

CLAMP

2-PLATEN

TIE BAR DISTANCE 35.8 inches x 32.7 inches

PLATEN SIZE 50 inches x 49.6 inches

DAYLIGHT MIN 13.8 inches

DAYLIGHT MAX 65.11 inches 35.4 MAX MOLD HEIGHT

CORE PULL SEQUENCES YES BOTH PLATENS

TYPES OF CONTROLS CC 200 AO2

VOLTAGE 460

DIMENSIONS 27.08 ft x 8.18 ft x 8.9 ftOPTIONS & UPGRADES INCLUDES VIPER 40 ROBOT

OVERALL CONDITION EXCELLENT

BARREL & SCREW EXCELLENT

HOURS 73,500

MATERIAL RUN HDPE

OPTIONS & UPGRADES BARRIER MIXING SCREW WITH PNEUMATIC SHUTOFF NOZZLE, CERAMIC HEATER BANDS, SPEED CONTROL ELECTRICAL SCREW DRIVE FOR INCREASED SCREW SPEED, 4 AIR CIRCUITS ON EACH SIDE, PNEUMATIC VALVE GATE, AIR BLOW BOTH PLATENS, SPEED CONTROL ELECTRIC SCREW DRIVE, CORE PULL BOTH PLATENS, PRESSURE RELEASE FOR ALL CORE PULLS, ELECTRICALLY ADJ VARIABLE DISPLACEMENT PUMP WITH PRESSURE AND VOLUME REGULATION, POSITION CONTROL PROPORTIONAL VALVE, MOTION NO MOTION, CORE AND EJECT MOTION NO MOTION, INJECT FORWARD DURING OPENING AND CLOSING, INTERFACE FOR CONVEYOR, 24" DROP AREA., AUTOPROTECT PRECISION MOLD PROTECTION, SPEED AND PRESSURE MONITORING, ROBOT INTERFACE, PART DROP CONFIRMATION

Location: USA

Price exworks as is / where is
