warehouse no.: 503243
manufacturer: KRAUSS MAFFEI

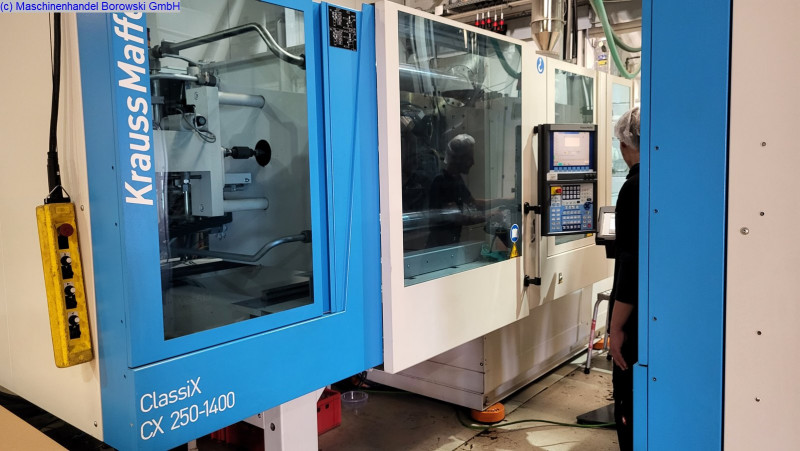

type: KM 250-1400 CX
controller: MC5
year of construction: 2010
operation hours: 54872 h


Top-class fully hydraulic injection molding machine from Krauss Maffei. The mechanics and the hydraulics of the CX series are checked by the experienced technician and the main components are subjected to a functional test. Tie-bars, cylinders, screw, non-return valve and the control pump are checked and, if necessary, renewed or repaired. The swept volume is 570 ccm with a maximum injection pressure of 2387 bar. The MC 5 control unit has optimized the operation and setting options and allows the installer maximum convenience.

Have we piqued your interest? Contact us and get detailed information.

technical data clamping unit
clamping force: 2500 kN
distance between tie-bars h x v: 630 x 630 mm
size of mould plates h x v: 995 x 1050 mm
min. mould height: 330 mm
max. open daylight: 1150 mm
opening stroke: 820 mm
ejector stroke: 200 mm
ejector force: 58 kN
centering diameter of moving platen: 160 mm
centering diameter of fixed platen: 160 mm
weight of mould: 3430 kg

technical data injection unit
screw diameter: 55 mm
swept volume: 570 ccm
injection pressure: 2387 bar
screw length: 22 l/d
screw speed: 260 min
plasticising rate: 49 g/s PS
number of heating zones: 6

measures & weight
measures of machine l x w x h: 6.5m x 2.2m x 2.3m
total weight: 15000KG

equipment included
2x control for hotrunner
screen text german
CEE-socket 16A
pressure accumulator for uprated injection speed + ejector or core-pull parallel
core pulling hydraulically 1x
air valve 4x
machine with material hopper
machine incl. water flow regulator
Machine without Handling
Anti vibration mounts
electric interface for handling units according to Euromap 12
interface robot EUROMAP 67
interface USB
Schuko-socket 10A
wear-resistant injection unit
