CROSSED MIXING SYSTEM FOR PLASTIC MATERIALS
The system includes n.2 x 20.000 lt. vertical mixers which fill each other through the endless screw conveyor.
(available also 2 x 30 m3 system)
for each mixer :
total height approx 6.950 mm including transmission group
max diam. 2.380 mm.(standard transport)
constructed in painted electro-welded carbon steel.
inner auger diam.350 mm.
lower hopper with safety grid and sampling shutter, complete with anti-dust cover, mm.600×500
pulley and belt transmission, protected by carters

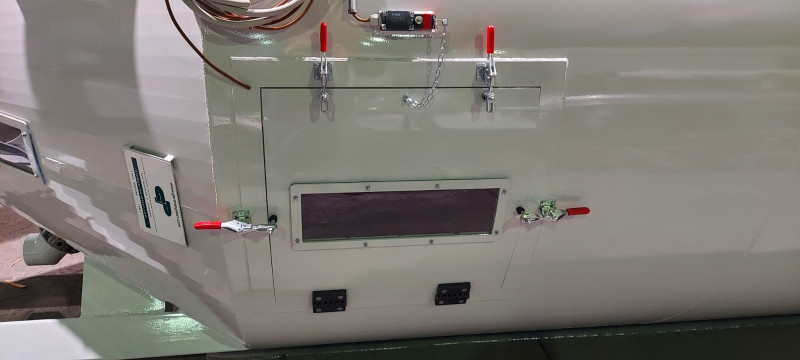

inspection doors with safety limits
cleaning hinged door with on bottom of cone for complete discharging, with safety opening
bottom discharging pipe on the other mixer'shopper with pneumatic valves
side discharging pipe to big bag with valve mm.at 2.700 mm from ground with pneumatic valves
electric min/max level indicator, paddle type
N.1 loading hopper with horizontal conveying screw to one of the 2 mixers (can add another if needed)
complete with bag supporting structure
discharging pipe with valve to central collection hopper
electric motor 15 kw
dust sleeve on top
complete with 1 control panel for each mixer.
electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V
CE compliance, drawings and instructions manual
Possible addition of weighing system with label printer for each structure
