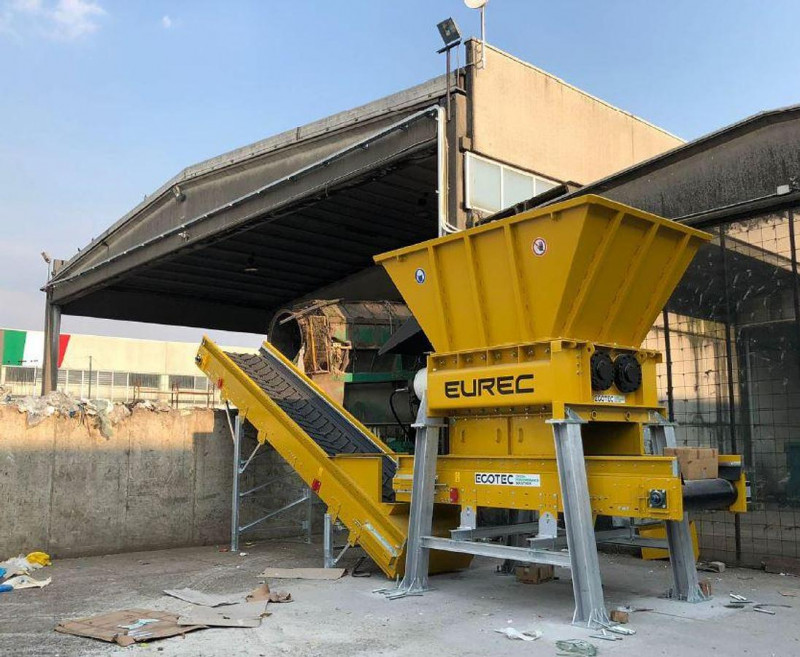

EuRec S 24.10 E

Year 2019

The shredder consists of a separate shredding unit and a drive unit, connected by electrical cables and hydraulic pipes.

Separate drive unit with cooling system

Maximum distance between the shredder and the drive unit: 6 m; longer distances available as an option.

Transmission: Electrohydrostatic

With automatic reversal of the shredding shafts in the event of overpressure caused by foreign bodies

Weight

Shredder weight: approx. 18,000 kg

Drive unit

Drive with 2 Siemens electric motors - 132 kW each

Power consumption: approx. 270 kW

Start control with soft start

Connecting cables: 2 cables with 4 wires each - wire cross-section between 70 and 300 mm²

Power-controlled hydraulic system

The hydraulic motors rotate at lower speeds as the load increases, thus transmitting higher torque to the shredder shafts.

Continuously variable shredder shaft speed adjustment from 0 to 30 rpm.

The rotor speed is infinitely variable.

This allows the shredder's performance to be adapted to the subsequent operators.

Robust 3-stage planetary gearbox.

Rated output torque: > 240,000 Nm.

Feed hopper: approx. 3,600 x 2,450 x 1,400 mm.

Bolt-on, removable for transport.

Paint finish:

RAL 1005 Honey Yellow (or RAL of your choice).

Automatic shaft bearing lubrication.

Documentation:

Operation and maintenance manual in Italian.

CE certification.

Electrical and control panel:

The control panel is located next to the machine.

Made by RITTAL, dust-proof and fully wired.

Main safety switch.

Fan-assisted air exchange.

Emergency button.

Ammeters for electrical consumption.

With buttons and selectors for all functions.

Operation and service monitoring via programmable logic control

Error messages and service reminders are clearly displayed on the display;

Machine adjustment to the material being shredded via 3 selectable and freely modifiable programs;

Optimal cleaning effect of the shredding shafts thanks to adjustable forced reversal, independent of pressure and its duration.

Pressure-dependent rotor reversals allow the number of reversals per unit of time to be adjusted and the machine to be stopped if contamination is detected;

The direction of rotation of the shredding shafts can be preselected (different materials are shredded better with the shafts rotating forward, while others are shredded better with the shafts rotating backward).

Single-channel emergency stop circuit

Remote control

For remote control of machine functions

Patented pair of shredding shafts

For output grain sizes up to approx. 250 – 300 mm

Shredding occurs in both directions of travel

Patented shredding/scraping side combs:

Very robust, made of special, high-strength, wear-resistant steel.

With shredding, scraping, and self-cleaning shaft functions.

Multiple labyrinth seals on the shaft ends

Prevents the intrusion of foreign matter into the shaft bearings

Conveyor belt for bidirectional evacuation and control

Shredder elevation of approximately 600 mm for the double belt

Reversible horizontal belt

Inclined belt

Screen with belt control
